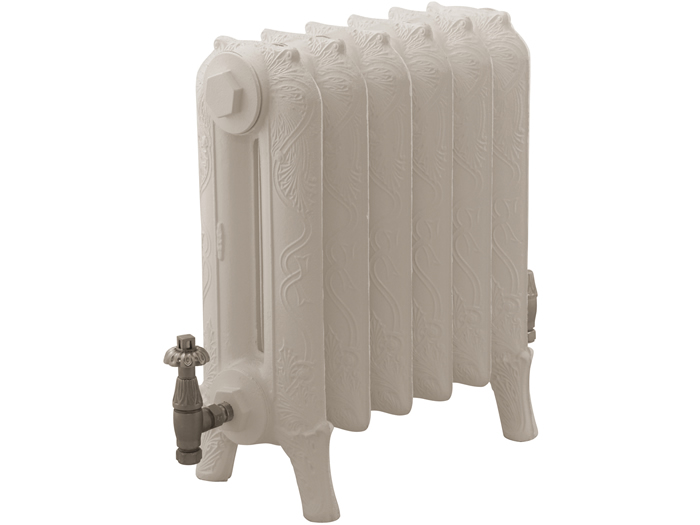

Image shown: Ribbon 2 column cast iron radiator in Parchment White

Ribbon 2 Column Cast Iron Radiator

This features a Celtic band pattern gracefully flowing down the radiator.

Originally manufactured by the American Radiator Company, circa 1880, originals of this model can be typically found in churches throughout the world.

An alternative product you may also be interested in would be our Ribbon 4 Column Cast Iron Radiator.

All our cast iron radiators come with a LIFETIME GUARANTEE.

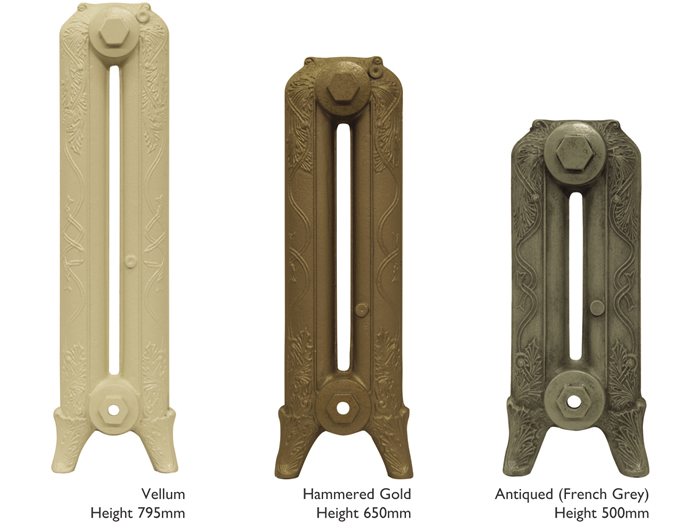

Available in 3 heights: 500mm, 650mm, 795mm

From £184.50 (£61.50 per section)

Available In 3 Heights
Lifetime Guarantee
FREE UK Mainland Delivery*
Specialist Finishes Available
Over 10,000 Colour Options

*On orders over £300 inc. VAT

* per cast iron radiator section.

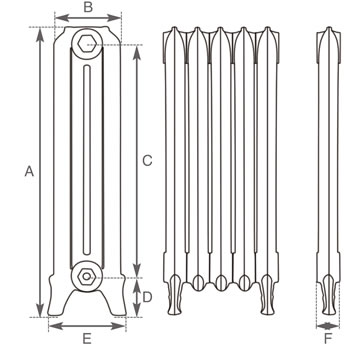

A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	Δ T50 BTUs*	Δ T50 Watts*	Δ T30 BTUs*	Δ T30 Watts*	Weight (empty)*
500	185	340	110	215	67	227	67	124	36	8.3kg
650	185	485	110	215	67	298	87	162	48	10.9kg
795	185	630	110	215	67	388	114	202	59	11.8kg

To calculate the British Thermal Units (BTU's) required to heat your room please use our Heat Output (BTU) Calculator

Our radiators are available in any desired colour or finish. Our specialised artisan finishes are as follows:

Antiqued French Grey
Hand Burnished

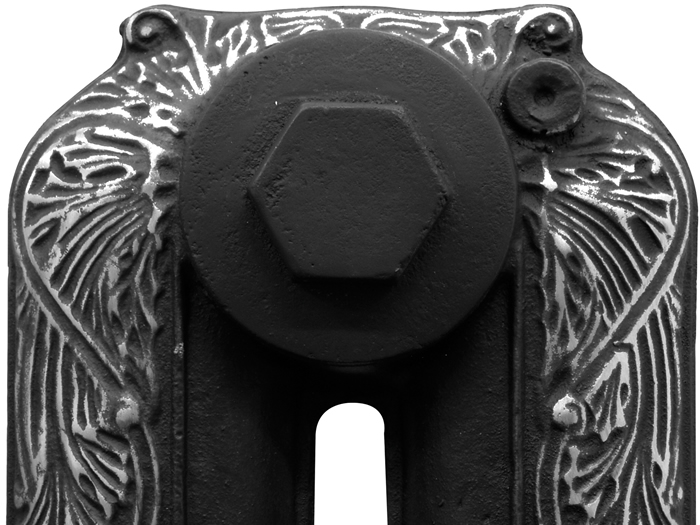

Highlight Polish
Satin Polished

Other specialised Trads colours and finishes are shown below. Swatches are available for these 12 colours

Ancient Breeze
Buttermilk
Foundry Grey
French Grey
Graphite Grey
Hammered Bronze
Hammered Gold
Parchment White
Primer
Satin Black
Vellum

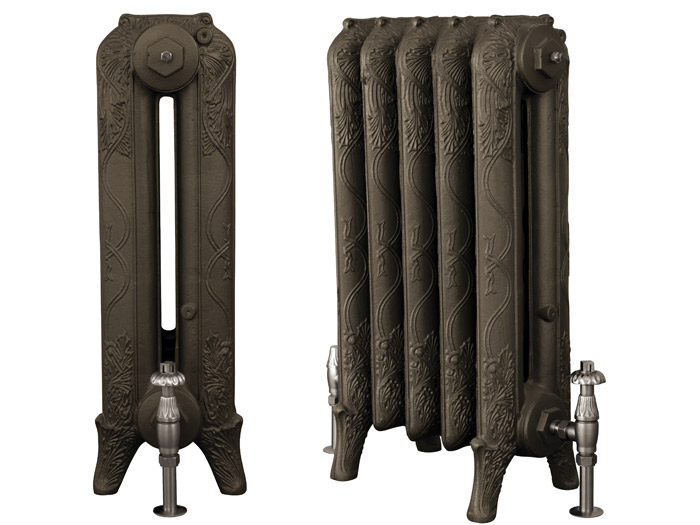

Willow Green

Any other colour is available, for example all Farrow & Ball shades and all other recognised brands.

With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase. Please contact us with your swatch request.

Ribbon 2 Column Radiator Sizing & Metrics

Model No.	Height	Sections	Width /Length (inc. bushes)	Depth (from wall)	BTU's (ΔT 30°)	Watts (ΔT 30°)	BTU's (ΔT 50°)	Watts (ΔT 50°)	BTU's (ΔT 60°)	Watts (ΔT 60°)	Empty Weight	Filled Weight	Price From (inc. VAT in Primer)	Buy Radiator
JJC014/015	500mm	3	235mm	215mm	372	108	681	201	846	249	24.9kg	30.0kg	£184.50
JJC014/015	500mm	4	302mm	215mm	496	144	908	268	1128	332	33.2kg	40.0kg	£246.00
JJC014/015	500mm	5	369mm	215mm	620	180	1135	335	1410	415	41.5kg	50.0kg	£307.50
JJC014/015	500mm	6	436mm	215mm	744	216	1362	402	1692	498	49.8kg	60.0kg	£369.00
JJC014/015	500mm	7	503mm	215mm	868	252	1589	469	1974	581	58.1kg	70.0kg	£430.50
JJC014/015	500mm	8	570mm	215mm	992	288	1816	536	2256	664	66.4kg	80.0kg	£492.00
JJC014/015	500mm	9	637mm	215mm	1116	324	2043	603	2538	747	74.7kg	90.0kg	£553.50
JJC014/015	500mm	10	704mm	215mm	1240	360	2270	670	2820	830	83.0kg	100.0kg	£615.00
JJC014/015	500mm	11	771mm	215mm	1364	396	2497	737	3102	913	91.3kg	110.0kg	£676.50
JJC014/015	500mm	12	838mm	215mm	1488	432	2724	804	3384	996	99.6kg	120.0kg	£738.00
JJC014/015	500mm	13	905mm	215mm	1612	468	2951	871	3666	1079	107.9kg	130.0kg	£799.50
JJC014/015	500mm	14	972mm	215mm	1736	504	3178	938	3948	1162	116.2kg	140.0kg	£861.00
JJC014/015	500mm	15	1039mm	215mm	1860	540	3405	1005	4230	1245	124.5kg	150.0kg	£922.50
JJC014/015	500mm	16	1106mm	215mm	1984	576	3632	1072	4512	1328	132.8kg	160.0kg	£984.00
JJC014/015	500mm	17	1173mm	215mm	2108	612	3859	1139	4794	1411	141.1kg	170.0kg	£1045.50
JJC014/015	500mm	18	1240mm	215mm	2232	648	4086	1206	5076	1494	149.4kg	180.0kg	£1107.00
JJC014/015	500mm	19	1307mm	215mm	2356	684	4313	1273	5358	1577	157.7kg	190.0kg	£1168.50
JJC014/015	500mm	20	1374mm	215mm	2480	720	4540	1340	5640	1660	166.0kg	200.0kg	£1230.00
JJC014/015	500mm	21	1441mm	215mm	2604	756	4767	1407	5922	1743	174.3kg	210.0kg	£1291.50
JJC014/015	500mm	22	1508mm	215mm	2728	792	4994	1474	6204	1826	182.6kg	220.0kg	£1353.00
JJC014/015	500mm	23	1575mm	215mm	2852	828	5221	1541	6486	1909	190.9kg	230.0kg	£1414.50
JJC014/015	500mm	24	1642mm	215mm	2976	864	5448	1608	6768	1992	199.2kg	240.0kg	£1476.00
JJC014/015	500mm	25	1709mm	215mm	3100	900	5675	1675	7050	2075	207.5kg	250.0kg	£1537.50
JJC014/015	500mm	26	1776mm	215mm	3224	936	5902	1742	7332	2158	215.8kg	260.0kg	£1599.00
JJC014/015	500mm	27	1843mm	215mm	3348	972	6129	1809	7614	2241	224.1kg	270.0kg	£1660.50
JJC014/015	500mm	28	1910mm	215mm	3472	1008	6356	1876	7896	2324	232.4kg	280.0kg	£1722.00
JJC014/015	500mm	29	1977mm	215mm	3596	1044	6583	1943	8178	2407	240.7kg	290.0kg	£1783.50
JJC014/015	500mm	30	2044mm	215mm	3720	1080	6810	2010	8460	2490	249.0kg	300.0kg	£1845.00
Model No.	Height	Sections	Width /Length (inc. bushes)	Depth (from wall)	BTU's (ΔT 30°)	Watts (ΔT 30°)	BTU's (ΔT 50°)	Watts (ΔT 50°)	BTU's (ΔT 60°)	Watts (ΔT 60°)	Empty Weight	Filled Weight	Price From (inc. VAT in Primer)	Buy Radiator
TBK116/117	650mm	3	235mm	215mm	486	144	894	261	1113	327	32.7kg	38.7kg	£205.50
TBK116/117	650mm	4	302mm	215mm	648	192	1192	348	1484	436	43.6kg	51.6kg	£274.00
TBK116/117	650mm	5	369mm	215mm	810	240	1490	435	1855	545	54.5kg	64.5kg	£342.50
TBK116/117	650mm	6	436mm	215mm	972	288	1788	522	2226	654	65.4kg	77.4kg	£411.00
TBK116/117	650mm	7	503mm	215mm	1134	336	2086	609	2597	763	76.3kg	90.3kg	£479.50
TBK116/117	650mm	8	570mm	215mm	1296	384	2384	696	2968	872	87.2kg	103.2kg	£548.00
TBK116/117	650mm	9	637mm	215mm	1458	432	2682	783	3339	981	98.1kg	116.1kg	£616.50
TBK116/117	650mm	10	704mm	215mm	1620	480	2980	870	3710	1090	109.0kg	129.0kg	£685.00
TBK116/117	650mm	11	771mm	215mm	1782	528	3278	957	4081	1199	119.9kg	141.9kg	£753.50
TBK116/117	650mm	12	838mm	215mm	1944	576	3576	1044	4452	1308	130.8kg	154.8kg	£822.00
TBK116/117	650mm	13	905mm	215mm	2106	624	3874	1131	4823	1417	141.7kg	167.7kg	£890.50
TBK116/117	650mm	14	972mm	215mm	2268	672	4172	1218	5194	1526	152.6kg	180.6kg	£959.00
TBK116/117	650mm	15	1039mm	215mm	2430	720	4470	1305	5565	1635	163.5kg	193.5kg	£1027.50
TBK116/117	650mm	16	1106mm	215mm	2592	768	4768	1392	5936	1744	174.4kg	206.4kg	£1096.00
TBK116/117	650mm	17	1173mm	215mm	2754	816	5066	1479	6307	1853	185.3kg	219.3kg	£1164.50
TBK116/117	650mm	18	1240mm	215mm	2916	864	5364	1566	6678	1962	196.2kg	232.2kg	£1233.00
TBK116/117	650mm	19	1307mm	215mm	3078	912	5662	1653	7049	2071	207.1kg	245.1kg	£1301.50
TBK116/117	650mm	20	1374mm	215mm	3240	960	5960	1740	7420	2180	218.0kg	258.0kg	£1370.00
TBK116/117	650mm	21	1441mm	215mm	3402	1008	6258	1827	7791	2289	228.9kg	270.9kg	£1438.50
TBK116/117	650mm	22	1508mm	215mm	3564	1056	6556	1914	8162	2398	239.8kg	283.8kg	£1507.00
TBK116/117	650mm	23	1575mm	215mm	3726	1104	6854	2001	8533	2507	250.7kg	296.7kg	£1575.50
TBK116/117	650mm	24	1642mm	215mm	3888	1152	7152	2088	8904	2616	261.6kg	309.6kg	£1644.00
TBK116/117	650mm	25	1709mm	215mm	4050	1200	7450	2175	9275	2725	272.5kg	322.5kg	£1712.50
TBK116/117	650mm	26	1776mm	215mm	4212	1248	7748	2262	9646	2834	283.4kg	335.4kg	£1781.00
TBK116/117	650mm	27	1843mm	215mm	4374	1296	8046	2349	10017	2943	294.3kg	348.3kg	£1849.50
TBK116/117	650mm	28	1910mm	215mm	4536	1344	8344	2436	10388	3052	305.2kg	361.2kg	£1918.00
TBK116/117	650mm	29	1977mm	215mm	4698	1392	8642	2523	10759	3161	316.1kg	374.1kg	£1986.50
TBK116/117	650mm	30	2044mm	215mm	4860	1440	8940	2610	11130	3270	327.0kg	387.0kg	£2055.00
Model No.	Height	Sections	Width /Length (inc. bushes)	Depth (from wall)	BTU's (ΔT 30°)	Watts (ΔT 30°)	BTU's (ΔT 50°)	Watts (ΔT 50°)	BTU's (ΔT 60°)	Watts (ΔT 60°)	Empty Weight	Filled Weight	Price From (inc. VAT in Primer)	Buy Radiator
TBK134/135	795mm	3	235mm	215mm	606	177	1164	342	1470	432	35.4kg	43.8kg	£264.00
TBK134/135	795mm	4	302mm	215mm	808	236	1552	456	1960	576	47.2kg	58.4kg	£352.00
TBK134/135	795mm	5	369mm	215mm	1010	295	1940	570	2450	720	59.0kg	73.0kg	£440.00
TBK134/135	795mm	6	436mm	215mm	1212	354	2328	684	2940	864	70.8kg	87.6kg	£528.00
TBK134/135	795mm	7	503mm	215mm	1414	413	2716	798	3430	1008	82.6kg	102.2kg	£616.00
TBK134/135	795mm	8	570mm	215mm	1616	472	3104	912	3920	1152	94.4kg	116.8kg	£704.00
TBK134/135	795mm	9	637mm	215mm	1818	531	3492	1026	4410	1296	106.2kg	131.4kg	£792.00
TBK134/135	795mm	10	704mm	215mm	2020	590	3880	1140	4900	1440	118.0kg	146.0kg	£880.00
TBK134/135	795mm	11	771mm	215mm	2222	649	4268	1254	5390	1584	129.8kg	160.6kg	£968.00
TBK134/135	795mm	12	838mm	215mm	2424	708	4656	1368	5880	1728	141.6kg	175.2kg	£1056.00
TBK134/135	795mm	13	905mm	215mm	2626	767	5044	1482	6370	1872	153.4kg	189.8kg	£1144.00
TBK134/135	795mm	14	972mm	215mm	2828	826	5432	1596	6860	2016	165.2kg	204.4kg	£1232.00
TBK134/135	795mm	15	1039mm	215mm	3030	885	5820	1710	7350	2160	177.0kg	219.0kg	£1320.00
TBK134/135	795mm	16	1106mm	215mm	3232	944	6208	1824	7840	2304	188.8kg	233.6kg	£1408.00
TBK134/135	795mm	17	1173mm	215mm	3434	1003	6596	1938	8330	2448	200.6kg	248.2kg	£1496.00
TBK134/135	795mm	18	1240mm	215mm	3636	1062	6984	2052	8820	2592	212.4kg	262.8kg	£1584.00
TBK134/135	795mm	19	1307mm	215mm	3838	1121	7372	2166	9310	2736	224.2kg	277.4kg	£1672.00
TBK134/135	795mm	20	1374mm	215mm	4040	1180	7760	2280	9800	2880	236.0kg	292.0kg	£1760.00
TBK134/135	795mm	21	1441mm	215mm	4242	1239	8148	2394	10290	3024	247.8kg	306.6kg	£1848.00
TBK134/135	795mm	22	1508mm	215mm	4444	1298	8536	2508	10780	3168	259.6kg	321.2kg	£1936.00
TBK134/135	795mm	23	1575mm	215mm	4646	1357	8924	2622	11270	3312	271.4kg	335.8kg	£2024.00
TBK134/135	795mm	24	1642mm	215mm	4848	1416	9312	2736	11760	3456	283.2kg	350.4kg	£2112.00
TBK134/135	795mm	25	1709mm	215mm	5050	1475	9700	2850	12250	3600	295.0kg	365.0kg	£2200.00
TBK134/135	795mm	26	1776mm	215mm	5252	1534	10088	2964	12740	3744	306.8kg	379.6kg	£2288.00
TBK134/135	795mm	27	1843mm	215mm	5454	1593	10476	3078	13230	3888	318.6kg	394.2kg	£2376.00
TBK134/135	795mm	28	1910mm	215mm	5656	1652	10864	3192	13720	4032	330.4kg	408.8kg	£2464.00
TBK134/135	795mm	29	1977mm	215mm	5858	1711	11252	3306	14210	4176	342.2kg	423.4kg	£2552.00
TBK134/135	795mm	30	2044mm	215mm	6060	1770	11640	3420	14700	4320	354.0kg	438.0kg	£2640.00
