Rathmell 2 Column In Graphite Grey

Rathmell 2 Column In Graphite Grey

Rathmell 2 Column Cast Iron Radiator

The Rathmell 2 Column’s design also means that it’s ideal for other compact rooms and spaces where space is at a premium such as cloakrooms and bathrooms.

Available in 1 heights: 1030mm

From £135.00 (£45.00 per section)

United Kingdom Flag Hand-built & finished in the UK from 10 working days
  • Tallest Radiator At 1030mm
  • Over 10,000 Colour Options
  • FREE UK Mainland Delivery*
  • Lifetime Guarantee
  • Specialist Finishes Available

*On orders over £300.00

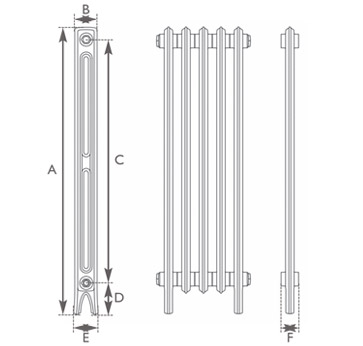

Rathmell 2 Column Line Drawing

* per cast iron radiator section.

1030 81 867 115 88 62 289 85 151 44 5.6kg

To calculate the British Thermal Units (BTU's) required to heat your room please use our Heat Output (BTU) Calculator

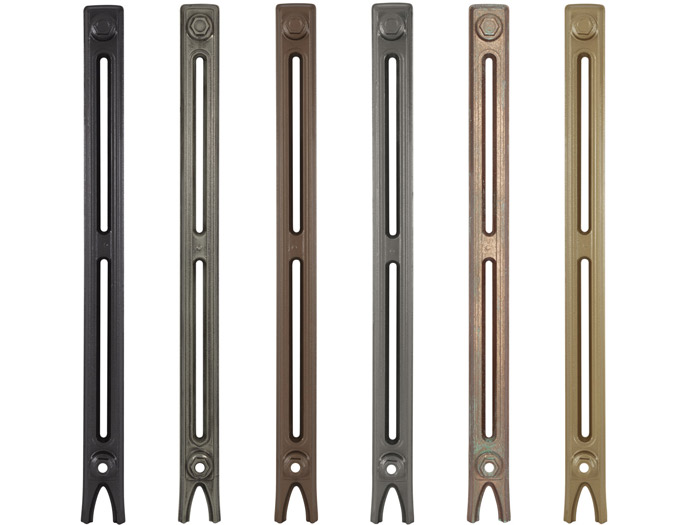

Our radiators are available in any desired colour or finish. Our specialised artisan finishes are as follows:

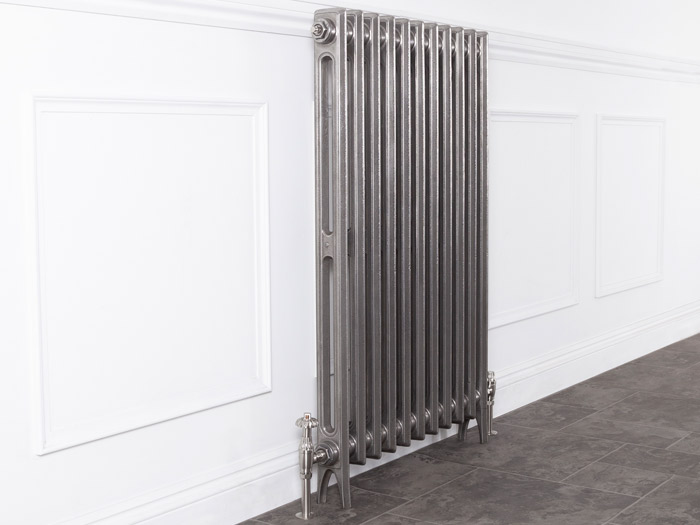

  • Rathmell 2 Column 1030Mm Hand Burnished End Hand Burnished
  • Rathmell 2 Column 1030Mm Hand Burnished End Satin Polished

Other specialised Trads colours and finishes are shown below. Swatches are available for these 12 colours

  • Rathmell 2 Column 1030Mm Ancient Breeze End Ancient Breeze
  • Rathmell 2 Column 1030Mm Buttermilk End Buttermilk
  • Rathmell 2 Column 1030Mm Foundry Grey End Foundry Grey
  • Rathmell 2 Column 1030Mm French Grey End French Grey
  • Rathmell 2 Column 1030Mm Graphite Grey End Graphite Grey
  • Rathmell 2 Column 1030Mm Hammered Bronze End Hammered Bronze
  • Rathmell 2 Column 1030Mm Hammered Gold End Hammered Gold
  • Rathmell 2 Column 1030Mm Parchment White End Parchment White
  • Rathmell 2 Column 1030Mm Primer End Primer
  • Rathmell 2 Column 1030Mm Satin Black End Satin Black
  • Rathmell 2 Column 1030Mm Vellum End Vellum
  • Rathmell 2 Column 1030Mm Willow Green End Willow Green

Any other colour is available, for example all Farrow & Ball shades and all other recognised brands.

With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase. Please contact us with your swatch request.

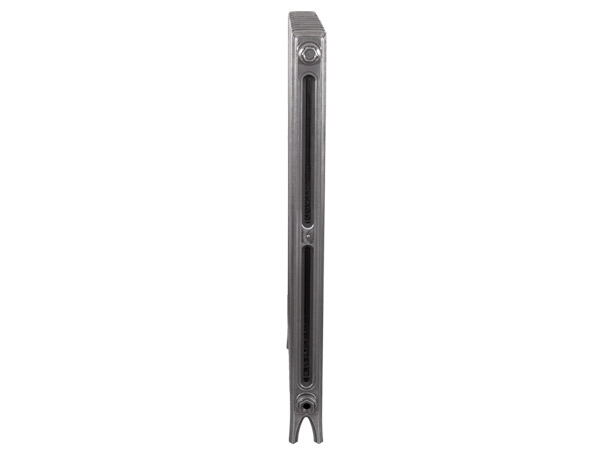

Rathmell 2 Column 1030 01
Model No. Height Sections Width
/Length
(inc. bushes)
Depth
(from wall)
BTU's
(ΔT 30°)
Watts
(ΔT 30°)
BTU's
(ΔT 50°)
BTU's
(ΔT 60°)
Watts
(ΔT 60°)
Empty Weight Filled Weight Price From
(in Primer)
Buy Radiator
TBK137/138 1030mm 3 220mm 88mm 453 132 867 1095 321 16.8kg 18.9kg £135.00
TBK137/138 1030mm 4 282mm 88mm 604 176 1156 1460 428 22.4kg 25.2kg £180.00
TBK137/138 1030mm 5 344mm 88mm 755 220 1445 1825 535 28.0kg 31.5kg £225.00
TBK137/138 1030mm 6 406mm 88mm 906 264 1734 2190 642 33.6kg 37.8kg £270.00
TBK137/138 1030mm 7 468mm 88mm 1057 308 2023 2555 749 39.2kg 44.1kg £315.00
TBK137/138 1030mm 8 530mm 88mm 1208 352 2312 2920 856 44.8kg 50.4kg £360.00
TBK137/138 1030mm 9 592mm 88mm 1359 396 2601 3285 963 50.4kg 56.7kg £405.00
TBK137/138 1030mm 10 654mm 88mm 1510 440 2890 3650 1070 56.0kg 63.0kg £450.00
TBK137/138 1030mm 11 716mm 88mm 1661 484 3179 4015 1177 61.6kg 69.3kg £495.00
TBK137/138 1030mm 12 778mm 88mm 1812 528 3468 4380 1284 67.2kg 75.6kg £540.00
TBK137/138 1030mm 13 840mm 88mm 1963 572 3757 4745 1391 72.8kg 81.9kg £585.00
TBK137/138 1030mm 14 902mm 88mm 2114 616 4046 5110 1498 78.4kg 88.2kg £630.00
TBK137/138 1030mm 15 964mm 88mm 2265 660 4335 5475 1605 84.0kg 94.5kg £675.00
TBK137/138 1030mm 16 1026mm 88mm 2416 704 4624 5840 1712 89.6kg 100.8kg £720.00
TBK137/138 1030mm 17 1088mm 88mm 2567 748 4913 6205 1819 95.2kg 107.1kg £765.00
TBK137/138 1030mm 18 1150mm 88mm 2718 792 5202 6570 1926 100.8kg 113.4kg £810.00
TBK137/138 1030mm 19 1212mm 88mm 2869 836 5491 6935 2033 106.4kg 119.7kg £855.00
TBK137/138 1030mm 20 1274mm 88mm 3020 880 5780 7300 2140 112.0kg 126.0kg £900.00
TBK137/138 1030mm 21 1336mm 88mm 3171 924 6069 7665 2247 117.6kg 132.3kg £945.00
TBK137/138 1030mm 22 1398mm 88mm 3322 968 6358 8030 2354 123.2kg 138.6kg £990.00
TBK137/138 1030mm 23 1460mm 88mm 3473 1012 6647 8395 2461 128.8kg 144.9kg £1035.00
TBK137/138 1030mm 24 1522mm 88mm 3624 1056 6936 8760 2568 134.4kg 151.2kg £1080.00
TBK137/138 1030mm 25 1584mm 88mm 3775 1100 7225 9125 2675 140.0kg 157.5kg £1125.00
TBK137/138 1030mm 26 1646mm 88mm 3926 1144 7514 9490 2782 145.6kg 163.8kg £1170.00
TBK137/138 1030mm 27 1708mm 88mm 4077 1188 7803 9855 2889 151.2kg 170.1kg £1215.00
TBK137/138 1030mm 28 1770mm 88mm 4228 1232 8092 10220 2996 156.8kg 176.4kg £1260.00
TBK137/138 1030mm 29 1832mm 88mm 4379 1276 8381 10585 3103 162.4kg 182.7kg £1305.00
TBK137/138 1030mm 30 1894mm 88mm 4530 1320 8670 10950 3210 168.0kg 189.0kg £1350.00

A new addition to Trads’ highly-popular Rathmell range of cast iron radiators, the Rathmell 2 Column is designed to perfectly fit in corridors, hallways and other types of thoroughfares.

The Rathmell 2 Column’s design also means that it’s ideal for other compact rooms and spaces where space is at a premium such as cloakrooms and bathrooms.

Don’t think that the Rathmell 2 Column’s versatility comes at the expense of performance. At 1030mm high, this is the tallest radiator in the Rathmell range and puts out an impressive number of BTUs.

From an aesthetic viewpoint, the Rathmell 2 Column takes an Edwardian design and adds a modern twist, using clean, simple lines and gently rounded top to create a radiator that is a timeless classic.

Cast iron quality

The Rathmell 2 Column is manufactured from the finest cast iron.

At Trads we choose cast iron because of its excellent thermal characteristics, providing long-lasting heat retention and powerful radiation - meaning that a cast iron radiator like the Rathmell 2 Column will heat your home far more effectively than other types of radiators.

When it comes to the design and moulds of the Rathmell 2 Column, Trads’ approved foundries cast it using CNC-machined moulds to the tightest of tolerances, resulting in a radiator that has all of the distinct characteristics of cast iron.

Colours and finishes: it’s your choice

Where the Rathmell 2 Column and Trads really stands out from other cast iron radiators is in the sheer number of colours and finishes available.

Think of a colour and Trads can almost certainly finish your radiator in it. That’s because our industry-leading paint team has access to over 10,000 colours from prestige paint brands including Farrow & Ball, Roberson’s Liquid Metal, Cromadex and Carron.

If that’s not enough, our team can also provide a colour match service, where we match the colour of your radiator to a wet sample provided by yourself.

Trads is also able to provide a variety of finishes to your radiator from hand burnished and satin polish to highlight polish and multiple patinas.

Quality, guaranteed

There aren’t many cast iron radiator manufacturers that contain a team of master craftsmen with over a century of experience between them.

Trads can.

It’s our mission to build the world’s best cast iron radiators; radiators that match classic, timeless styling, with the latest heating technology.

That’s why we’ve launched radiators like the Rathmell 2 Column which is a physical embodiment of this mission.

Every Rathmell 2 Column we produced has been designed and manufactured with the highest quality in mind. What’s more, every radiator is subjected to rigorous pressure testing and quality assurance checks before being shipped to you.

Finally, every Rathmell 2 Column comes with a lifetime guarantee.

Buy your 2 column cast iron radiator from Trads today

If the Rathmell 2 Column looks like the perfect cast iron radiator for your home, then order one today!

Should you have any questions that you’d like answered before ordering, then the Trads team is happy to help.

You can reach our friendly, expert team on 01400 263320 or at: sales@tradscastironradiators.co.uk
