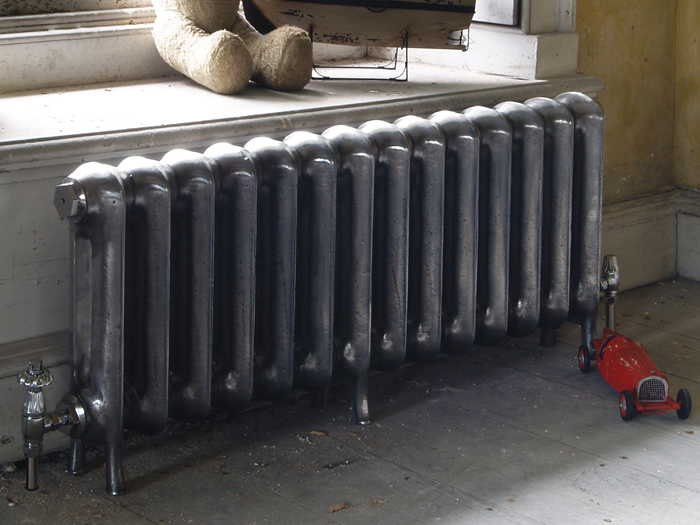

Princess 14 Section Hand Burnished Cast Iron Radiator

Princess 14 Section Hand Burnished Cast Iron Radiator

Princess Cast Iron Radiator

Believed to be originally manufactured by the American Radiator Company circa 1890, its shallow depth is ideally suited for hallways and narrow rooms.

Originally known as the 'Peerless' radiator, this model is very much a modern day classic.

All our cast iron radiators come with a LIFETIME GUARANTEE.

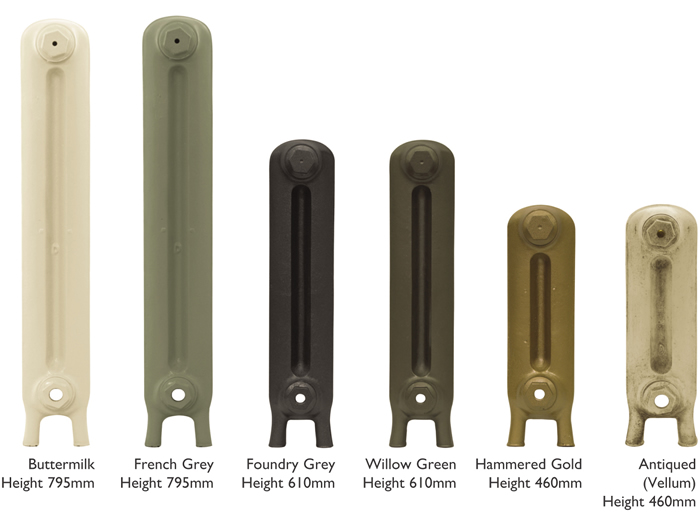

Available in 3 heights: 460mm, 610mm, 795mm

From £109.50 (£36.50 per section)

United Kingdom Flag Hand-built & finished in the UK from 10 working days
  • Lifetime Guarantee
  • FREE UK Mainland Delivery*
  • Over 10,000 Colour Options
  • Specialist Finishes Available
  • Available In 3 Heights

*On orders over £300.00

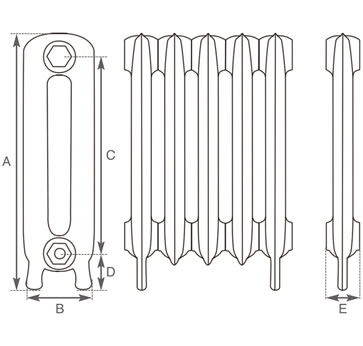

Princess Line Drawing

* per cast iron radiator section.

460 125 300 105 76 171 50 91 27 5.3kg
610 125 450 105 75 226 66 122 36 7.8kg
795 125 640 105 76 315 92 165 48 9.3kg

To calculate the British Thermal Units (BTU's) required to heat your room please use our Heat Output (BTU) Calculator

Our radiators are available in any desired colour or finish. Our specialised artisan finishes are as follows:

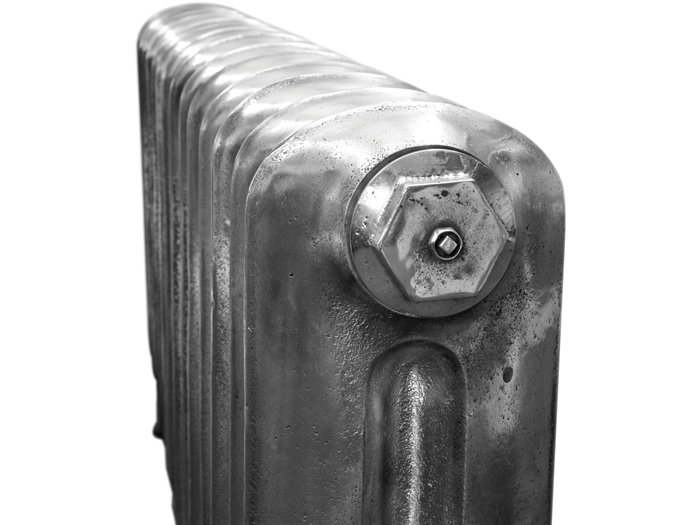

  • Princess 460Mm Hand Burnished End Hand Burnished
  • Princess 460Mm Hand Burnished End Satin Polished

Other specialised Trads colours and finishes are shown below. Swatches are available for these 12 colours

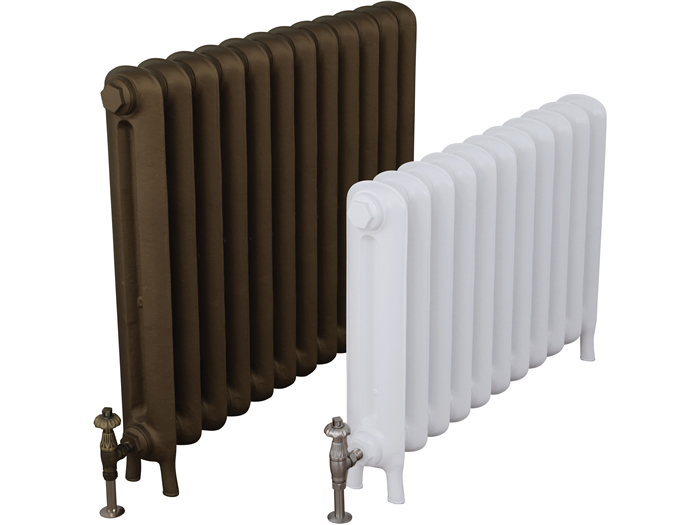

  • Princess 460Mm Ancient Breeze End Ancient Breeze
  • Princess 460Mm Foundry Grey End Foundry Grey
  • Princess 460Mm French Grey End French Grey
  • Princess 460Mm Graphite Grey End Graphite Grey
  • Princess 460Mm Hammered Bronze End Hammered Bronze
  • Princess 460Mm Hammered Gold End Hammered Gold
  • Princess 460Mm Parchment White End Parchment White
  • Princess 460Mm Primer End Primer
  • Princess 460Mm Satin Black End Satin Black

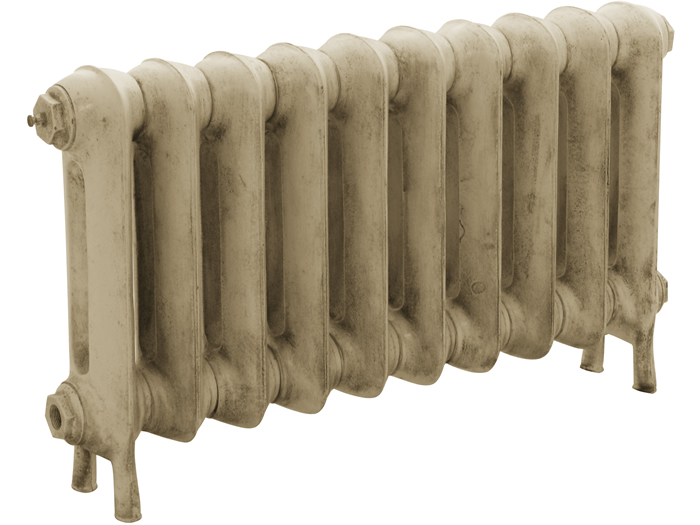

  • Princess 460Mm Vellum End Vellum
  • Princess 460Mm Willow Green End Willow Green

Any other colour is available, for example all Farrow & Ball shades and all other recognised brands.

With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase. Please contact us with your swatch request.

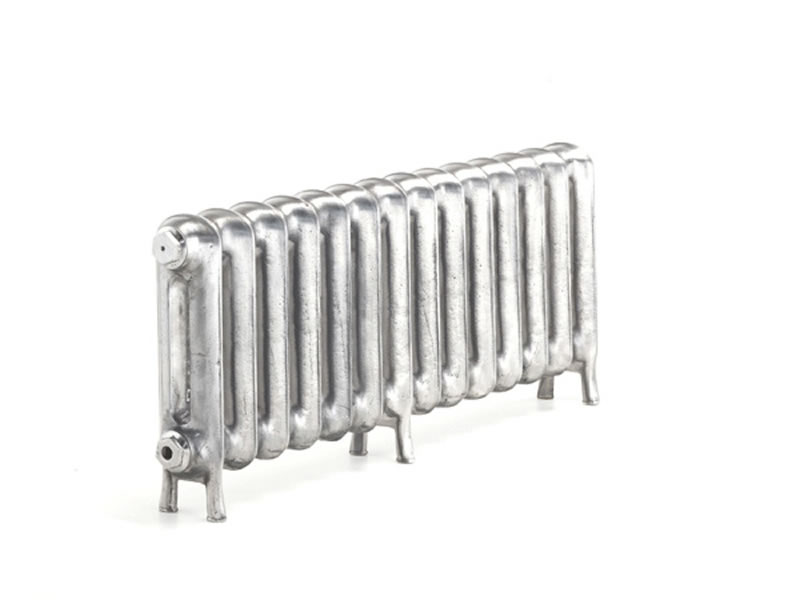

Princess Cast Iron Radiator 800 01
Model No. Height Sections Width
/Length
(inc. bushes)
Depth
(from wall)
BTU's
(ΔT 30°)
Watts
(ΔT 30°)
BTU's
(ΔT 50°)
BTU's
(ΔT 60°)
Watts
(ΔT 60°)
Empty Weight Filled Weight Price From
(in Primer)
Buy Radiator
TBK102/103 460mm 3 262mm 125mm 273 81 513 639 186 15.9kg 18.6kg £109.50
TBK102/103 460mm 4 338mm 125mm 364 108 684 852 248 21.2kg 24.8kg £146.00
TBK102/103 460mm 5 414mm 125mm 455 135 855 1065 310 26.5kg 31.0kg £182.50
TBK102/103 460mm 6 490mm 125mm 546 162 1026 1278 372 31.8kg 37.1kg £219.00
TBK102/103 460mm 7 566mm 125mm 637 189 1197 1491 434 37.1kg 43.3kg £255.50
TBK102/103 460mm 8 642mm 125mm 728 216 1368 1704 496 42.4kg 49.5kg £292.00
TBK102/103 460mm 9 718mm 125mm 819 243 1539 1917 558 47.7kg 55.7kg £328.50
TBK102/103 460mm 10 794mm 125mm 910 270 1710 2130 620 53.0kg 61.9kg £365.00
TBK102/103 460mm 11 870mm 125mm 1001 297 1881 2343 682 58.3kg 68.1kg £401.50
TBK102/103 460mm 12 946mm 125mm 1092 324 2052 2556 744 63.6kg 74.3kg £438.00
TBK102/103 460mm 13 1022mm 125mm 1183 351 2223 2769 806 68.9kg 80.5kg £474.50
TBK102/103 460mm 14 1098mm 125mm 1274 378 2394 2982 868 74.2kg 86.7kg £511.00
TBK102/103 460mm 15 1174mm 125mm 1365 405 2565 3195 930 79.5kg 92.9kg £547.50
TBK102/103 460mm 16 1250mm 125mm 1456 432 2736 3408 992 84.8kg 99.0kg £584.00
TBK102/103 460mm 17 1326mm 125mm 1547 459 2907 3621 1054 90.1kg 105.2kg £620.50
TBK102/103 460mm 18 1402mm 125mm 1638 486 3078 3834 1116 95.4kg 111.4kg £657.00
TBK102/103 460mm 19 1478mm 125mm 1729 513 3249 4047 1178 100.7kg 117.6kg £693.50
TBK102/103 460mm 20 1554mm 125mm 1820 540 3420 4260 1240 106.0kg 123.8kg £730.00
TBK102/103 460mm 21 1630mm 125mm 1911 567 3591 4473 1302 111.3kg 130.0kg £766.50
TBK102/103 460mm 22 1706mm 125mm 2002 594 3762 4686 1364 116.6kg 136.2kg £803.00
TBK102/103 460mm 23 1782mm 125mm 2093 621 3933 4899 1426 121.9kg 142.4kg £839.50
TBK102/103 460mm 24 1858mm 125mm 2184 648 4104 5112 1488 127.2kg 148.6kg £876.00
TBK102/103 460mm 25 1934mm 125mm 2275 675 4275 5325 1550 132.5kg 154.8kg £912.50
TBK102/103 460mm 26 2010mm 125mm 2366 702 4446 5538 1612 137.8kg 160.9kg £949.00
TBK102/103 460mm 27 2086mm 125mm 2457 729 4617 5751 1674 143.1kg 167.1kg £985.50
TBK102/103 460mm 28 2162mm 125mm 2548 756 4788 5964 1736 148.4kg 173.3kg £1022.00
TBK102/103 460mm 29 2238mm 125mm 2639 783 4959 6177 1798 153.7kg 179.5kg £1058.50
TBK102/103 460mm 30 2314mm 125mm 2730 810 5130 6390 1860 159.0kg 185.7kg £1095.00
Model No. Height Sections Width
/Length
(inc. bushes)
Depth
(from wall)
BTU's
(ΔT 30°)
Watts
(ΔT 30°)
BTU's
(ΔT 50°)
BTU's
(ΔT 60°)
Watts
(ΔT 60°)
Empty Weight Filled Weight Price From
(in Primer)
Buy Radiator
TBK104/105 610mm 3 259mm 125mm 366 108 678 843 249 23.4kg 26.4kg £144.00
TBK104/105 610mm 4 334mm 125mm 488 144 904 1124 332 31.2kg 35.2kg £192.00
TBK104/105 610mm 5 409mm 125mm 610 180 1130 1405 415 39.0kg 44.0kg £240.00
TBK104/105 610mm 6 484mm 125mm 732 216 1356 1686 498 46.8kg 52.8kg £288.00
TBK104/105 610mm 7 559mm 125mm 854 252 1582 1967 581 54.6kg 61.6kg £336.00
TBK104/105 610mm 8 634mm 125mm 976 288 1808 2248 664 62.4kg 70.4kg £384.00
TBK104/105 610mm 9 709mm 125mm 1098 324 2034 2529 747 70.2kg 79.2kg £432.00
TBK104/105 610mm 10 784mm 125mm 1220 360 2260 2810 830 78.0kg 88.0kg £480.00
TBK104/105 610mm 11 859mm 125mm 1342 396 2486 3091 913 85.8kg 96.8kg £528.00
TBK104/105 610mm 12 934mm 125mm 1464 432 2712 3372 996 93.6kg 105.6kg £576.00
TBK104/105 610mm 13 1009mm 125mm 1586 468 2938 3653 1079 101.4kg 114.4kg £624.00
TBK104/105 610mm 14 1084mm 125mm 1708 504 3164 3934 1162 109.2kg 123.2kg £672.00
TBK104/105 610mm 15 1159mm 125mm 1830 540 3390 4215 1245 117.0kg 132.0kg £720.00
TBK104/105 610mm 16 1234mm 125mm 1952 576 3616 4496 1328 124.8kg 140.8kg £768.00
TBK104/105 610mm 17 1309mm 125mm 2074 612 3842 4777 1411 132.6kg 149.6kg £816.00
TBK104/105 610mm 18 1384mm 125mm 2196 648 4068 5058 1494 140.4kg 158.4kg £864.00
TBK104/105 610mm 19 1459mm 125mm 2318 684 4294 5339 1577 148.2kg 167.2kg £912.00
TBK104/105 610mm 20 1534mm 125mm 2440 720 4520 5620 1660 156.0kg 176.0kg £960.00
TBK104/105 610mm 21 1609mm 125mm 2562 756 4746 5901 1743 163.8kg 184.8kg £1008.00
TBK104/105 610mm 22 1684mm 125mm 2684 792 4972 6182 1826 171.6kg 193.6kg £1056.00
TBK104/105 610mm 23 1759mm 125mm 2806 828 5198 6463 1909 179.4kg 202.4kg £1104.00
TBK104/105 610mm 24 1834mm 125mm 2928 864 5424 6744 1992 187.2kg 211.2kg £1152.00
TBK104/105 610mm 25 1909mm 125mm 3050 900 5650 7025 2075 195.0kg 220.0kg £1200.00
TBK104/105 610mm 26 1984mm 125mm 3172 936 5876 7306 2158 202.8kg 228.8kg £1248.00
TBK104/105 610mm 27 2059mm 125mm 3294 972 6102 7587 2241 210.6kg 237.6kg £1296.00
TBK104/105 610mm 28 2134mm 125mm 3416 1008 6328 7868 2324 218.4kg 246.4kg £1344.00
TBK104/105 610mm 29 2209mm 125mm 3538 1044 6554 8149 2407 226.2kg 255.2kg £1392.00
TBK104/105 610mm 30 2284mm 125mm 3660 1080 6780 8430 2490 234.0kg 264.0kg £1440.00
Model No. Height Sections Width
/Length
(inc. bushes)
Depth
(from wall)
BTU's
(ΔT 30°)
Watts
(ΔT 30°)
BTU's
(ΔT 50°)
BTU's
(ΔT 60°)
Watts
(ΔT 60°)
Empty Weight Filled Weight Price From
(in Primer)
Buy Radiator
TBK106/107 795mm 3 262mm 125mm 495 144 945 1191 348 27.9kg 35.7kg £168.00
TBK106/107 795mm 4 338mm 125mm 660 192 1260 1588 464 37.2kg 47.6kg £224.00
TBK106/107 795mm 5 414mm 125mm 825 240 1575 1985 580 46.5kg 59.5kg £280.00
TBK106/107 795mm 6 490mm 125mm 990 288 1890 2382 696 55.8kg 71.4kg £336.00
TBK106/107 795mm 7 566mm 125mm 1155 336 2205 2779 812 65.1kg 83.3kg £392.00
TBK106/107 795mm 8 642mm 125mm 1320 384 2520 3176 928 74.4kg 95.2kg £448.00
TBK106/107 795mm 9 718mm 125mm 1485 432 2835 3573 1044 83.7kg 107.1kg £504.00
TBK106/107 795mm 10 794mm 125mm 1650 480 3150 3970 1160 93.0kg 119.0kg £560.00
TBK106/107 795mm 11 870mm 125mm 1815 528 3465 4367 1276 102.3kg 130.9kg £616.00
TBK106/107 795mm 12 946mm 125mm 1980 576 3780 4764 1392 111.6kg 142.8kg £672.00
TBK106/107 795mm 13 1022mm 125mm 2145 624 4095 5161 1508 120.9kg 154.7kg £728.00
TBK106/107 795mm 14 1098mm 125mm 2310 672 4410 5558 1624 130.2kg 166.6kg £784.00
TBK106/107 795mm 15 1174mm 125mm 2475 720 4725 5955 1740 139.5kg 178.5kg £840.00
TBK106/107 795mm 16 1250mm 125mm 2640 768 5040 6352 1856 148.8kg 190.4kg £896.00
TBK106/107 795mm 17 1326mm 125mm 2805 816 5355 6749 1972 158.1kg 202.3kg £952.00
TBK106/107 795mm 18 1402mm 125mm 2970 864 5670 7146 2088 167.4kg 214.2kg £1008.00
TBK106/107 795mm 19 1478mm 125mm 3135 912 5985 7543 2204 176.7kg 226.1kg £1064.00
TBK106/107 795mm 20 1554mm 125mm 3300 960 6300 7940 2320 186.0kg 238.0kg £1120.00
TBK106/107 795mm 21 1630mm 125mm 3465 1008 6615 8337 2436 195.3kg 249.9kg £1176.00
TBK106/107 795mm 22 1706mm 125mm 3630 1056 6930 8734 2552 204.6kg 261.8kg £1232.00
TBK106/107 795mm 23 1782mm 125mm 3795 1104 7245 9131 2668 213.9kg 273.7kg £1288.00
TBK106/107 795mm 24 1858mm 125mm 3960 1152 7560 9528 2784 223.2kg 285.6kg £1344.00
TBK106/107 795mm 25 1934mm 125mm 4125 1200 7875 9925 2900 232.5kg 297.5kg £1400.00
TBK106/107 795mm 26 2010mm 125mm 4290 1248 8190 10322 3016 241.8kg 309.4kg £1456.00
TBK106/107 795mm 27 2086mm 125mm 4455 1296 8505 10719 3132 251.1kg 321.3kg £1512.00
TBK106/107 795mm 28 2162mm 125mm 4620 1344 8820 11116 3248 260.4kg 333.2kg £1568.00
TBK106/107 795mm 29 2238mm 125mm 4785 1392 9135 11513 3364 269.7kg 345.1kg £1624.00
TBK106/107 795mm 30 2314mm 125mm 4950 1440 9450 11910 3480 279.0kg 357.0kg £1680.00

The Princess cast iron radiator is a model thought to have been originally manufactured by the American Radiator Company in 1890. The name suggests lighter, more delicate features, which is precisely the case. This model has a shallower depth than many of our other pieces, making it ideal for installation in a hallway or narrow room, complementing rather than overpowering the space.

As with all of our cast iron radiators, the Princess cast iron radiator can be a striking feature for any space, whether private or commercial. Its rounded, graceful curves and smooth casting make it an easy yet beautiful addition to a building.

The Princess cast iron radiator is available in three heights: 460mm, 610mm and 795mm. Such varied options allow you to place these models throughout an entire building without concerns about them being unsuitable for mismatched spaces. This will create a sense of cohesion throughout the property. Some customers choose to pair Princess cast iron radiators with Duchess models. These radiators complement each other seamlessly, maintaining the flow of the interior, yet giving an element of variation.

Its classic appearance and authentic style make the Princess cast iron radiator suitable for the renovation of a period property, however, it has also found success in numerous other properties, from industrial-style urban spaces to castles. It is not just the simple elegance of the model that makes it appropriate for such varied architecture. The extensive range of colour and finish options that we offer allow you to style the radiator exactly as you wish.

Trads provides over 10,000 colour and finish options. Many of our satisfied customers have chosen to maintain the classic, muted colours that reflect early cast iron radiators, however, the resurgence of these models has seen some opting for bold, statement colours, ensuring the piece is a standout feature of any room. You can tailor your Princess cast iron radiator perfectly to your taste, style and size requirements with ease.

After designing your ideal model, we will ship your cast iron radiator anywhere in the UK Mainland free of charge (on orders over £300.00). Furthermore, due to the quality materials, paint and craftsmanship that we utilise, we are happy to offer a Lifetime Guarantee on all of our cast iron radiators.

Order today.
