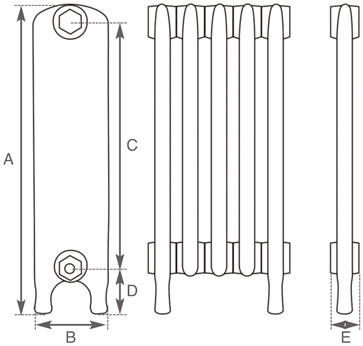

* per cast iron radiator section.
|
|
|
|
|
|
|
|
|
|
480 |
150 |
340 |
100 |
66 |
182 |
53 |
93 |
27 |
6.7kg |
620 |
150 |
480 |
100 |
66 |
226 |
66 |
119 |
35 |
7.7kg |
770 |
150 |
630 |
100 |
66 |
272 |
80 |
143 |
42 |
9kg |
To calculate the British Thermal Units (BTU's) required to heat your room please use our Heat Output (BTU) Calculator
Our radiators are available in any desired colour or finish. Our specialised artisan finishes are as follows:
-
Hand Burnished
-
Satin Polished

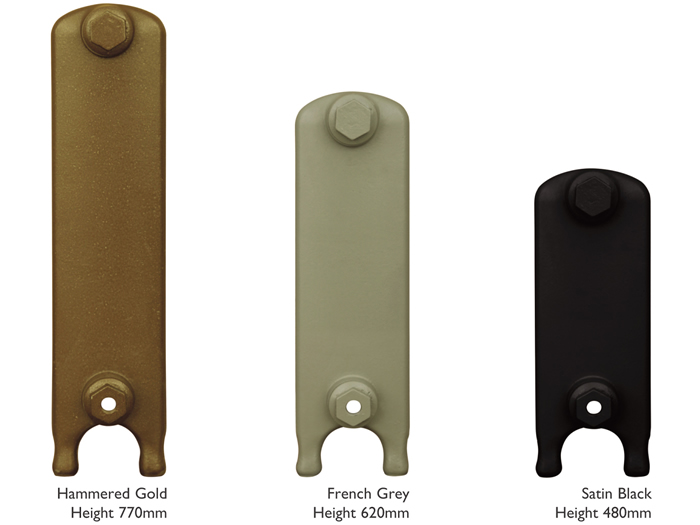

Other specialised Trads colours and finishes are shown below. Swatches are available for these 12 colours
-
Ancient Breeze
-
Buttermilk
-
Foundry Grey
-
French Grey
-
Graphite Grey
-
Hammered Bronze
-
Hammered Gold
-
Parchment White
-
Primer
-
Satin Black
-
Vellum
-
Willow Green
Any other colour is available, for example all Farrow & Ball shades and all other recognised brands.
With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.
Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase. Please contact us with your swatch request.
Eton Radiator Sizing & Metrics
Model No. |
Height |
Sections |
Width /Length (inc. bushes) |
Depth (from wall) |
BTU's (ΔT 30°) |
Watts (ΔT 30°) |
BTU's (ΔT 50°) |
Watts (ΔT 50°) |
BTU's (ΔT 60°) |
Watts (ΔT 60°) |
Empty Weight |
Filled Weight |
Price From (inc. VAT in Primer) |
Buy Radiator |
TBK118/119 |
480mm |
3 |
232mm |
150mm |
279 |
81 |
546 |
159 |
693 |
204 |
20.1kg |
23.1kg |
£135.00 |
|
TBK118/119 |
480mm |
4 |
298mm |
150mm |
372 |
108 |
728 |
212 |
924 |
272 |
26.8kg |
30.8kg |
£180.00 |
|
TBK118/119 |
480mm |
5 |
364mm |
150mm |
465 |
135 |
910 |
265 |
1155 |
340 |
33.5kg |
38.5kg |
£225.00 |
|
TBK118/119 |
480mm |
6 |
430mm |
150mm |
558 |
162 |
1092 |
318 |
1386 |
408 |
40.2kg |
46.2kg |
£270.00 |
|
TBK118/119 |
480mm |
7 |
496mm |
150mm |
651 |
189 |
1274 |
371 |
1617 |
476 |
46.9kg |
53.9kg |
£315.00 |
|
TBK118/119 |
480mm |
8 |
562mm |
150mm |
744 |
216 |
1456 |
424 |
1848 |
544 |
53.6kg |
61.6kg |
£360.00 |
|
TBK118/119 |
480mm |
9 |
628mm |
150mm |
837 |
243 |
1638 |
477 |
2079 |
612 |
60.3kg |
69.3kg |
£405.00 |
|
TBK118/119 |
480mm |
10 |
694mm |
150mm |
930 |
270 |
1820 |
530 |
2310 |
680 |
67.0kg |
77.0kg |
£450.00 |
|
TBK118/119 |
480mm |
11 |
760mm |
150mm |
1023 |
297 |
2002 |
583 |
2541 |
748 |
73.7kg |
84.7kg |
£495.00 |
|
TBK118/119 |
480mm |
12 |
826mm |
150mm |
1116 |
324 |
2184 |
636 |
2772 |
816 |
80.4kg |
92.4kg |
£540.00 |
|
TBK118/119 |
480mm |
13 |
892mm |
150mm |
1209 |
351 |
2366 |
689 |
3003 |
884 |
87.1kg |
100.1kg |
£585.00 |
|
TBK118/119 |
480mm |
14 |
958mm |
150mm |
1302 |
378 |
2548 |
742 |
3234 |
952 |
93.8kg |
107.8kg |
£630.00 |
|
TBK118/119 |
480mm |
15 |
1024mm |
150mm |
1395 |
405 |
2730 |
795 |
3465 |
1020 |
100.5kg |
115.5kg |
£675.00 |
|
TBK118/119 |
480mm |
16 |
1090mm |
150mm |
1488 |
432 |
2912 |
848 |
3696 |
1088 |
107.2kg |
123.2kg |
£720.00 |
|
TBK118/119 |
480mm |
17 |
1156mm |
150mm |
1581 |
459 |
3094 |
901 |
3927 |
1156 |
113.9kg |
130.9kg |
£765.00 |
|
TBK118/119 |
480mm |
18 |
1222mm |
150mm |
1674 |
486 |
3276 |
954 |
4158 |
1224 |
120.6kg |
138.6kg |
£810.00 |
|
TBK118/119 |
480mm |
19 |
1288mm |
150mm |
1767 |
513 |
3458 |
1007 |
4389 |
1292 |
127.3kg |
146.3kg |
£855.00 |
|
TBK118/119 |
480mm |
20 |
1354mm |
150mm |
1860 |
540 |
3640 |
1060 |
4620 |
1360 |
134.0kg |
154.0kg |
£900.00 |
|
TBK118/119 |
480mm |
21 |
1420mm |
150mm |
1953 |
567 |
3822 |
1113 |
4851 |
1428 |
140.7kg |
161.7kg |
£945.00 |
|
TBK118/119 |
480mm |
22 |
1486mm |
150mm |
2046 |
594 |
4004 |
1166 |
5082 |
1496 |
147.4kg |
169.4kg |
£990.00 |
|
TBK118/119 |
480mm |
23 |
1552mm |
150mm |
2139 |
621 |
4186 |
1219 |
5313 |
1564 |
154.1kg |
177.1kg |
£1035.00 |
|
TBK118/119 |
480mm |
24 |
1618mm |
150mm |
2232 |
648 |
4368 |
1272 |
5544 |
1632 |
160.8kg |
184.8kg |
£1080.00 |
|
TBK118/119 |
480mm |
25 |
1684mm |
150mm |
2325 |
675 |
4550 |
1325 |
5775 |
1700 |
167.5kg |
192.5kg |
£1125.00 |
|
TBK118/119 |
480mm |
26 |
1750mm |
150mm |
2418 |
702 |
4732 |
1378 |
6006 |
1768 |
174.2kg |
200.2kg |
£1170.00 |
|
TBK118/119 |
480mm |
27 |
1816mm |
150mm |
2511 |
729 |
4914 |
1431 |
6237 |
1836 |
180.9kg |
207.9kg |
£1215.00 |
|
TBK118/119 |
480mm |
28 |
1882mm |
150mm |
2604 |
756 |
5096 |
1484 |
6468 |
1904 |
187.6kg |
215.6kg |
£1260.00 |
|
TBK118/119 |
480mm |
29 |
1948mm |
150mm |
2697 |
783 |
5278 |
1537 |
6699 |
1972 |
194.3kg |
223.3kg |
£1305.00 |
|
TBK118/119 |
480mm |
30 |
2014mm |
150mm |
2790 |
810 |
5460 |
1590 |
6930 |
2040 |
201.0kg |
231.0kg |
£1350.00 |
|
Model No. |
Height |
Sections |
Width /Length (inc. bushes) |
Depth (from wall) |
BTU's (ΔT 30°) |
Watts (ΔT 30°) |
BTU's (ΔT 50°) |
Watts (ΔT 50°) |
BTU's (ΔT 60°) |
Watts (ΔT 60°) |
Empty Weight |
Filled Weight |
Price From (inc. VAT in Primer) |
Buy Radiator |
TBK128/129 |
620mm |
3 |
232mm |
150mm |
357 |
105 |
678 |
198 |
849 |
249 |
23.1kg |
27.0kg |
£171.00 |
|
TBK128/129 |
620mm |
4 |
298mm |
150mm |
476 |
140 |
904 |
264 |
1132 |
332 |
30.8kg |
36.0kg |
£228.00 |
|
TBK128/129 |
620mm |
5 |
364mm |
150mm |
595 |
175 |
1130 |
330 |
1415 |
415 |
38.5kg |
45.0kg |
£285.00 |
|
TBK128/129 |
620mm |
6 |
430mm |
150mm |
714 |
210 |
1356 |
396 |
1698 |
498 |
46.2kg |
54.0kg |
£342.00 |
|
TBK128/129 |
620mm |
7 |
496mm |
150mm |
833 |
245 |
1582 |
462 |
1981 |
581 |
53.9kg |
63.0kg |
£399.00 |
|
TBK128/129 |
620mm |
8 |
562mm |
150mm |
952 |
280 |
1808 |
528 |
2264 |
664 |
61.6kg |
72.0kg |
£456.00 |
|
TBK128/129 |
620mm |
9 |
628mm |
150mm |
1071 |
315 |
2034 |
594 |
2547 |
747 |
69.3kg |
81.0kg |
£513.00 |
|
TBK128/129 |
620mm |
10 |
694mm |
150mm |
1190 |
350 |
2260 |
660 |
2830 |
830 |
77.0kg |
90.0kg |
£570.00 |
|
TBK128/129 |
620mm |
11 |
760mm |
150mm |
1309 |
385 |
2486 |
726 |
3113 |
913 |
84.7kg |
99.0kg |
£627.00 |
|
TBK128/129 |
620mm |
12 |
826mm |
150mm |
1428 |
420 |
2712 |
792 |
3396 |
996 |
92.4kg |
108.0kg |
£684.00 |
|
TBK128/129 |
620mm |
13 |
892mm |
150mm |
1547 |
455 |
2938 |
858 |
3679 |
1079 |
100.1kg |
117.0kg |
£741.00 |
|
TBK128/129 |
620mm |
14 |
958mm |
150mm |
1666 |
490 |
3164 |
924 |
3962 |
1162 |
107.8kg |
126.0kg |
£798.00 |
|
TBK128/129 |
620mm |
15 |
1024mm |
150mm |
1785 |
525 |
3390 |
990 |
4245 |
1245 |
115.5kg |
135.0kg |
£855.00 |
|
TBK128/129 |
620mm |
16 |
1090mm |
150mm |
1904 |
560 |
3616 |
1056 |
4528 |
1328 |
123.2kg |
144.0kg |
£912.00 |
|
TBK128/129 |
620mm |
17 |
1156mm |
150mm |
2023 |
595 |
3842 |
1122 |
4811 |
1411 |
130.9kg |
153.0kg |
£969.00 |
|
TBK128/129 |
620mm |
18 |
1222mm |
150mm |
2142 |
630 |
4068 |
1188 |
5094 |
1494 |
138.6kg |
162.0kg |
£1026.00 |
|
TBK128/129 |
620mm |
19 |
1288mm |
150mm |
2261 |
665 |
4294 |
1254 |
5377 |
1577 |
146.3kg |
171.0kg |
£1083.00 |
|
TBK128/129 |
620mm |
20 |
1354mm |
150mm |
2380 |
700 |
4520 |
1320 |
5660 |
1660 |
154.0kg |
180.0kg |
£1140.00 |
|
TBK128/129 |
620mm |
21 |
1420mm |
150mm |
2499 |
735 |
4746 |
1386 |
5943 |
1743 |
161.7kg |
189.0kg |
£1197.00 |
|
TBK128/129 |
620mm |
22 |
1486mm |
150mm |
2618 |
770 |
4972 |
1452 |
6226 |
1826 |
169.4kg |
198.0kg |
£1254.00 |
|
TBK128/129 |
620mm |
23 |
1552mm |
150mm |
2737 |
805 |
5198 |
1518 |
6509 |
1909 |
177.1kg |
207.0kg |
£1311.00 |
|
TBK128/129 |
620mm |
24 |
1618mm |
150mm |
2856 |
840 |
5424 |
1584 |
6792 |
1992 |
184.8kg |
216.0kg |
£1368.00 |
|
TBK128/129 |
620mm |
25 |
1684mm |
150mm |
2975 |
875 |
5650 |
1650 |
7075 |
2075 |
192.5kg |
225.0kg |
£1425.00 |
|
TBK128/129 |
620mm |
26 |
1750mm |
150mm |
3094 |
910 |
5876 |
1716 |
7358 |
2158 |
200.2kg |
234.0kg |
£1482.00 |
|
TBK128/129 |
620mm |
27 |
1816mm |
150mm |
3213 |
945 |
6102 |
1782 |
7641 |
2241 |
207.9kg |
243.0kg |
£1539.00 |
|
TBK128/129 |
620mm |
28 |
1882mm |
150mm |
3332 |
980 |
6328 |
1848 |
7924 |
2324 |
215.6kg |
252.0kg |
£1596.00 |
|
TBK128/129 |
620mm |
29 |
1948mm |
150mm |
3451 |
1015 |
6554 |
1914 |
8207 |
2407 |
223.3kg |
261.0kg |
£1653.00 |
|
TBK128/129 |
620mm |
30 |
2014mm |
150mm |
3570 |
1050 |
6780 |
1980 |
8490 |
2490 |
231.0kg |
270.0kg |
£1710.00 |
|
Model No. |
Height |
Sections |
Width /Length (inc. bushes) |
Depth (from wall) |
BTU's (ΔT 30°) |
Watts (ΔT 30°) |
BTU's (ΔT 50°) |
Watts (ΔT 50°) |
BTU's (ΔT 60°) |
Watts (ΔT 60°) |
Empty Weight |
Filled Weight |
Price From (inc. VAT in Primer) |
Buy Radiator |
TBK120/121 |
770mm |
3 |
232mm |
150mm |
429 |
126 |
816 |
240 |
1029 |
300 |
27.0kg |
32.1kg |
£183.00 |
|
TBK120/121 |
770mm |
4 |
298mm |
150mm |
572 |
168 |
1088 |
320 |
1372 |
400 |
36.0kg |
42.8kg |
£244.00 |
|
TBK120/121 |
770mm |
5 |
364mm |
150mm |
715 |
210 |
1360 |
400 |
1715 |
500 |
45.0kg |
53.5kg |
£305.00 |
|
TBK120/121 |
770mm |
6 |
430mm |
150mm |
858 |
252 |
1632 |
480 |
2058 |
600 |
54.0kg |
64.2kg |
£366.00 |
|
TBK120/121 |
770mm |
7 |
496mm |
150mm |
1001 |
294 |
1904 |
560 |
2401 |
700 |
63.0kg |
74.9kg |
£427.00 |
|
TBK120/121 |
770mm |
8 |
562mm |
150mm |
1144 |
336 |
2176 |
640 |
2744 |
800 |
72.0kg |
85.6kg |
£488.00 |
|
TBK120/121 |
770mm |
9 |
628mm |
150mm |
1287 |
378 |
2448 |
720 |
3087 |
900 |
81.0kg |
96.3kg |
£549.00 |
|
TBK120/121 |
770mm |
10 |
694mm |
150mm |
1430 |
420 |
2720 |
800 |
3430 |
1000 |
90.0kg |
107.0kg |
£610.00 |
|
TBK120/121 |
770mm |
11 |
760mm |
150mm |
1573 |
462 |
2992 |
880 |
3773 |
1100 |
99.0kg |
117.7kg |
£671.00 |
|
TBK120/121 |
770mm |
12 |
826mm |
150mm |
1716 |
504 |
3264 |
960 |
4116 |
1200 |
108.0kg |
128.4kg |
£732.00 |
|
TBK120/121 |
770mm |
13 |
892mm |
150mm |
1859 |
546 |
3536 |
1040 |
4459 |
1300 |
117.0kg |
139.1kg |
£793.00 |
|
TBK120/121 |
770mm |
14 |
958mm |
150mm |
2002 |
588 |
3808 |
1120 |
4802 |
1400 |
126.0kg |
149.8kg |
£854.00 |
|
TBK120/121 |
770mm |
15 |
1024mm |
150mm |
2145 |
630 |
4080 |
1200 |
5145 |
1500 |
135.0kg |
160.5kg |
£915.00 |
|
TBK120/121 |
770mm |
16 |
1090mm |
150mm |
2288 |
672 |
4352 |
1280 |
5488 |
1600 |
144.0kg |
171.2kg |
£976.00 |
|
TBK120/121 |
770mm |
17 |
1156mm |
150mm |
2431 |
714 |
4624 |
1360 |
5831 |
1700 |
153.0kg |
181.9kg |
£1037.00 |
|
TBK120/121 |
770mm |
18 |
1222mm |
150mm |
2574 |
756 |
4896 |
1440 |
6174 |
1800 |
162.0kg |
192.6kg |
£1098.00 |
|
TBK120/121 |
770mm |
19 |
1288mm |
150mm |
2717 |
798 |
5168 |
1520 |
6517 |
1900 |
171.0kg |
203.3kg |
£1159.00 |
|
TBK120/121 |
770mm |
20 |
1354mm |
150mm |
2860 |
840 |
5440 |
1600 |
6860 |
2000 |
180.0kg |
214.0kg |
£1220.00 |
|
TBK120/121 |
770mm |
21 |
1420mm |
150mm |
3003 |
882 |
5712 |
1680 |
7203 |
2100 |
189.0kg |
224.7kg |
£1281.00 |
|
TBK120/121 |
770mm |
22 |
1486mm |
150mm |
3146 |
924 |
5984 |
1760 |
7546 |
2200 |
198.0kg |
235.4kg |
£1342.00 |
|
TBK120/121 |
770mm |
23 |
1552mm |
150mm |
3289 |
966 |
6256 |
1840 |
7889 |
2300 |
207.0kg |
246.1kg |
£1403.00 |
|
TBK120/121 |
770mm |
24 |
1618mm |
150mm |
3432 |
1008 |
6528 |
1920 |
8232 |
2400 |
216.0kg |
256.8kg |
£1464.00 |
|
TBK120/121 |
770mm |
25 |
1684mm |
150mm |
3575 |
1050 |
6800 |
2000 |
8575 |
2500 |
225.0kg |
267.5kg |
£1525.00 |
|
TBK120/121 |
770mm |
26 |
1750mm |
150mm |
3718 |
1092 |
7072 |
2080 |
8918 |
2600 |
234.0kg |
278.2kg |
£1586.00 |
|
TBK120/121 |
770mm |
27 |
1816mm |
150mm |
3861 |
1134 |
7344 |
2160 |
9261 |
2700 |
243.0kg |
288.9kg |
£1647.00 |
|
TBK120/121 |
770mm |
28 |
1882mm |
150mm |
4004 |
1176 |
7616 |
2240 |
9604 |
2800 |
252.0kg |
299.6kg |
£1708.00 |
|
TBK120/121 |
770mm |
29 |
1948mm |
150mm |
4147 |
1218 |
7888 |
2320 |
9947 |
2900 |
261.0kg |
310.3kg |
£1769.00 |
|
TBK120/121 |
770mm |
30 |
2014mm |
150mm |
4290 |
1260 |
8160 |
2400 |
10290 |
3000 |
270.0kg |
321.0kg |
£1830.00 |
|
Please wait...

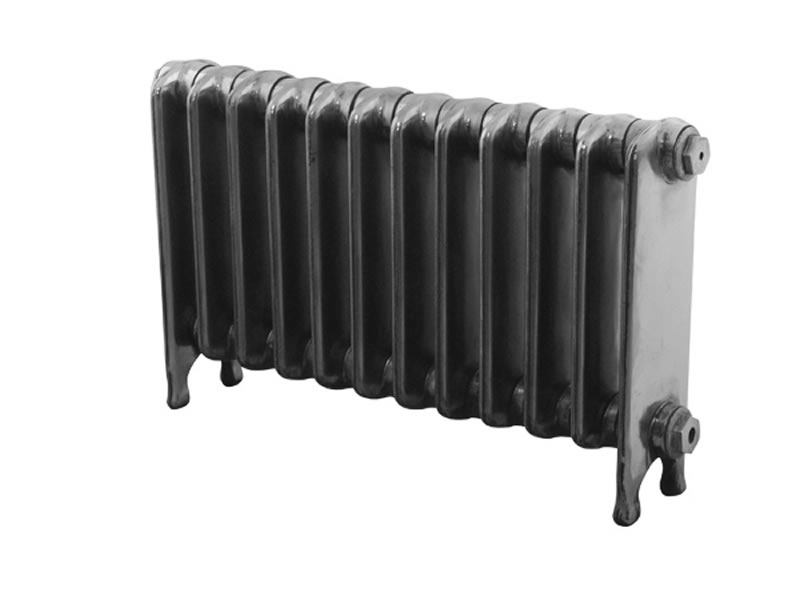

The Eton cast iron radiator is one of our most popular models. It combines simple design with classic style, making it the ideal choice for any modern or period home.
At Trads, our beautiful selection of cast iron radiators is inspired by a bygone age. We’re passionate about replicating the lavish interiors of eras past and we have built all of our products around this vision. The Eton’s simplicity, with a design consisting of straight edges and a curved top, is the perfect fit for a range of environments. It is both visually stunning and highly functional - stylish, yet brimming with substance.
The Eton is available in three different heights (480mm, 620mm, 770mm) and can be customised to your exact requirements. Our extensive paint and finish options will enable you to tailor this model to any room or environment, with the ability to add up to 30 sections another one of its biggest selling points. Colours from premium paint brands such as Farrow & Ball are available and we will use our on-site paint and spray shop facilities to add the finishing touch to your cast iron radiator.
Similar to our other models, the Eton cast iron radiator has been handmade in the UK by a team of knowledgeable and experienced craftsmen. Our design experts employ tried-and-tested manufacturing techniques when bringing our products to life and only work with the highest grade of cast iron.

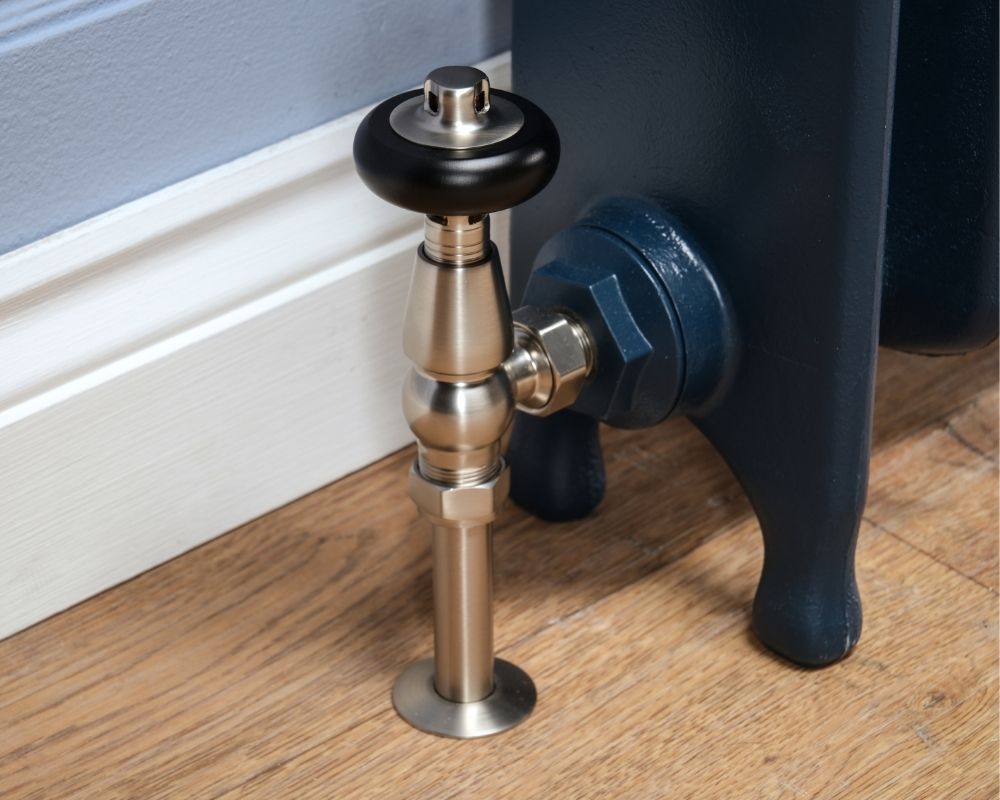

Finished with integral legs and complete with a Lifetime Guarantee, the Eton is a model without equal. Every one of our cast iron radiator designs is recognised for its quality, authenticity and reliability and the same can be said for the Eton.
Make the Eton part of the furniture today. You can browse our options in full below or get in touch for further information. FREE UK DELIVERY is on all items over £449 inc. VAT!
