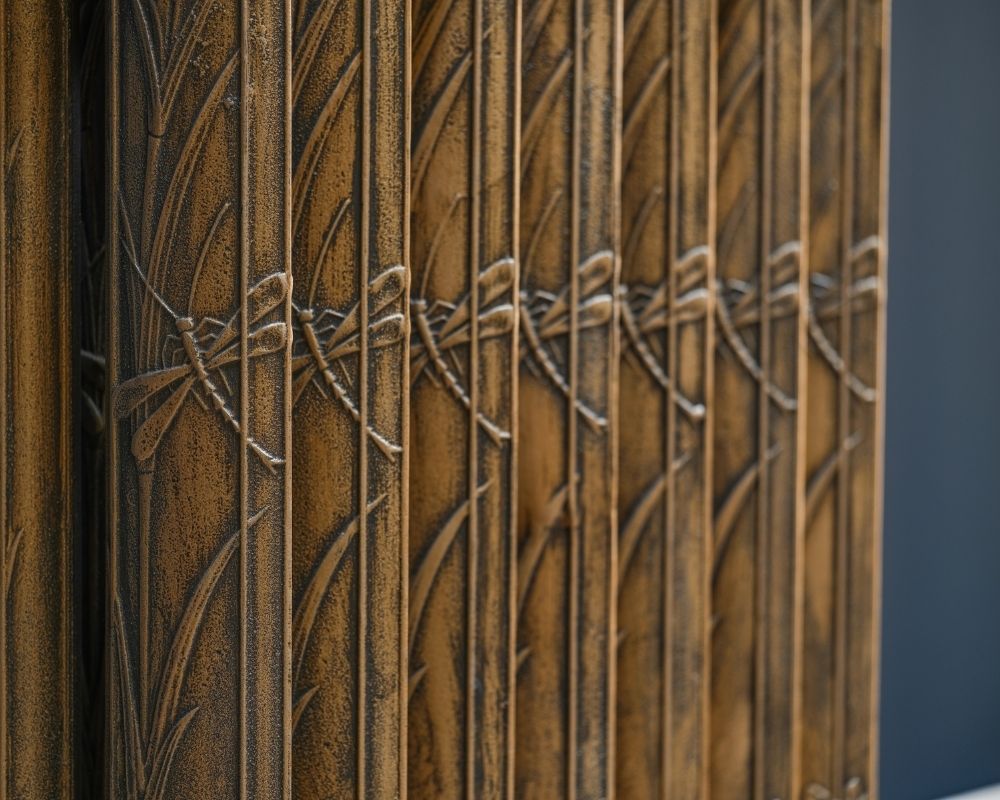

Dragonfly Hand Burnished Cast Iron Radiator Detail

Dragonfly Hand Burnished Cast Iron Radiator Detail

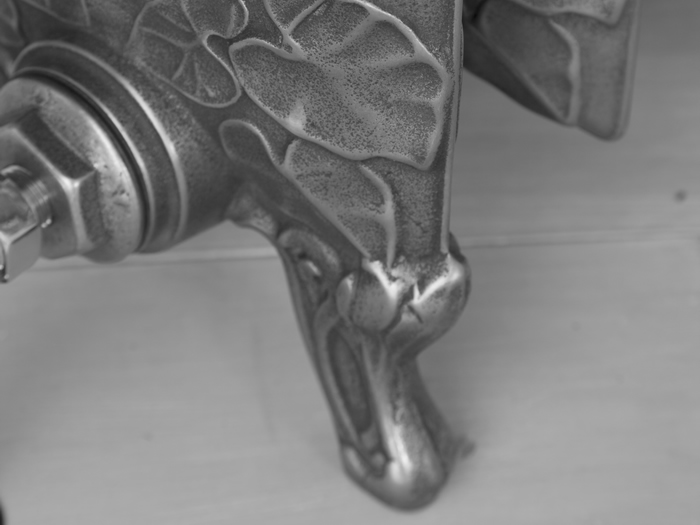

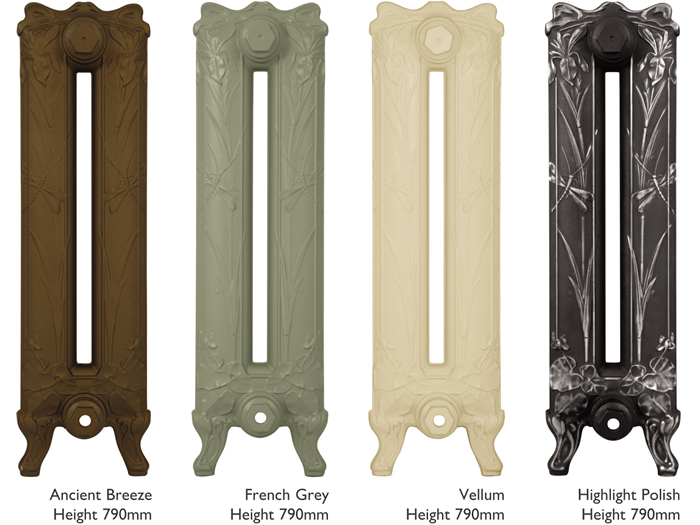

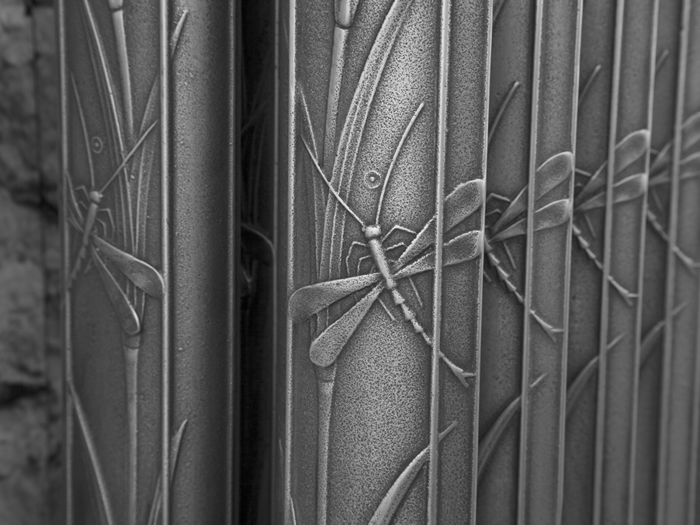

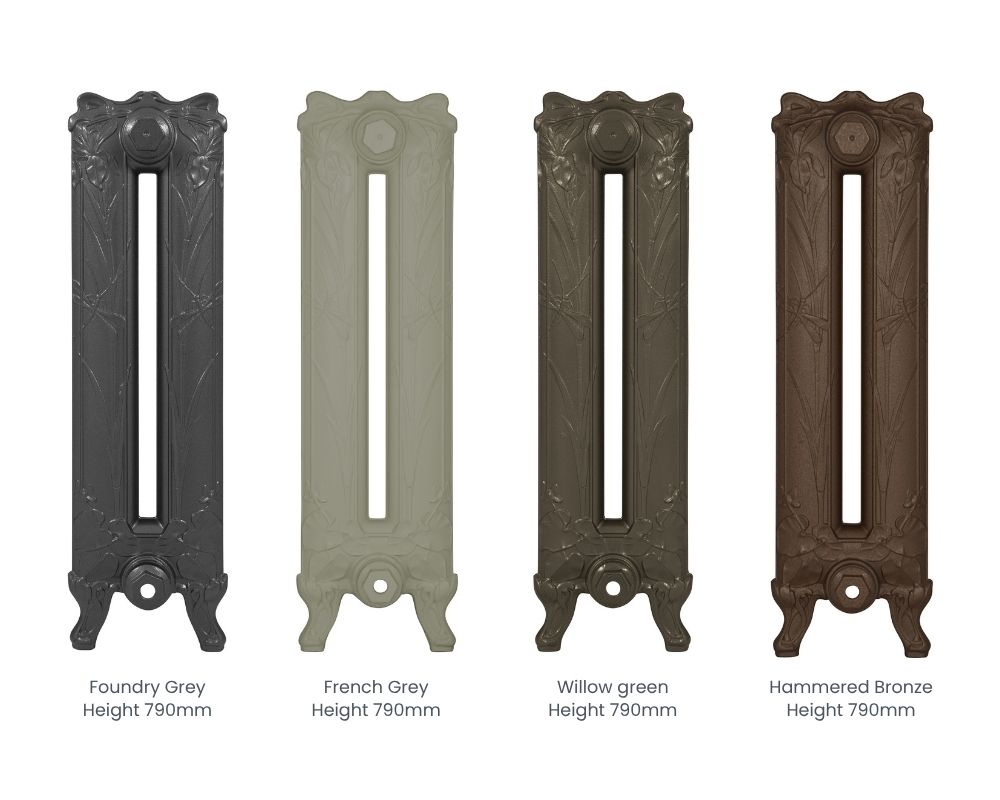

Dragonfly Hand Burnished Cast Iron Radiator Detail Dragonfly Radiator Sections In Various Painted Finishes Dragonfly Hand Burnished Cast Iron Radiator Detail (1) Hand Burnished Dragonfly Cast Iron Radiator Leg

Dragonfly Cast Iron Radiator

A true Art Nouveau design and natural decoration adds to the character of this cast iron radiator. A striking addition to any room.

Available in 1 heights: 790mm

From £277.50 (£92.50 per section)

United Kingdom Flag Hand-built & finished in the UK from 10 working days
  • Over 10,000 Colour Options
  • Lifetime Guarantee
  • FREE UK Mainland Delivery*
  • Select 15mm Or 22mm Inlet
  • Specialist Finishes Available

*On orders over £300.00

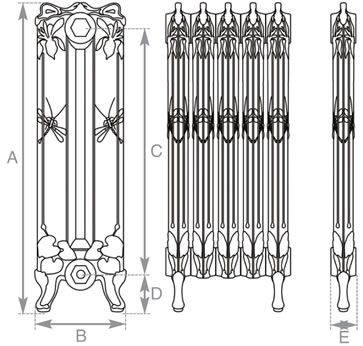

Dragonfly Line Drawing

* per cast iron radiator section.
790 225 620 105 85 462 136 247 73 12.2kg

To calculate the British Thermal Units (BTU's) required to heat your room please use our Heat Output (BTU) Calculator

Our radiators are available in any desired colour or finish. Our specialised artisan finishes are as follows:

  • Dragonfly 790Mm Hand Burnished End Hand Burnished
  • Dragonfly 790Mm Highlight Polish End Highlight Polish
  • Dragonfly 790Mm Hand Burnished End Satin Polished

Other specialised Trads colours and finishes are shown below. Swatches are available for these 12 colours

  • Dragonfly 790Mm Ancient Breeze End Ancient Breeze
  • Dragonfly 790Mm Buttermilk End Buttermilk
  • Dragonfly 790Mm Foundry Grey End Foundry Grey
  • Dragonfly 790Mm French Grey End French Grey
  • Dragonfly 790Mm Graphite Grey End Graphite Grey
  • Dragonfly 790Mm Hammered Bronze End Hammered Bronze
  • Dragonfly 790Mm Hammered Gold End Hammered Gold
  • Dragonfly 790Mm Parchment White End Parchment White
  • Dragonfly 790Mm Primer End Primer
  • Dragonfly 790Mm Satin Black End Satin Black
  • Dragonfly 790Mm Vellum End Vellum
  • Dragonfly 790Mm Willow Green End Willow Green

Any other colour is available, for example all Farrow & Ball shades and all other recognised brands.

With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase. Please contact us with your swatch request.

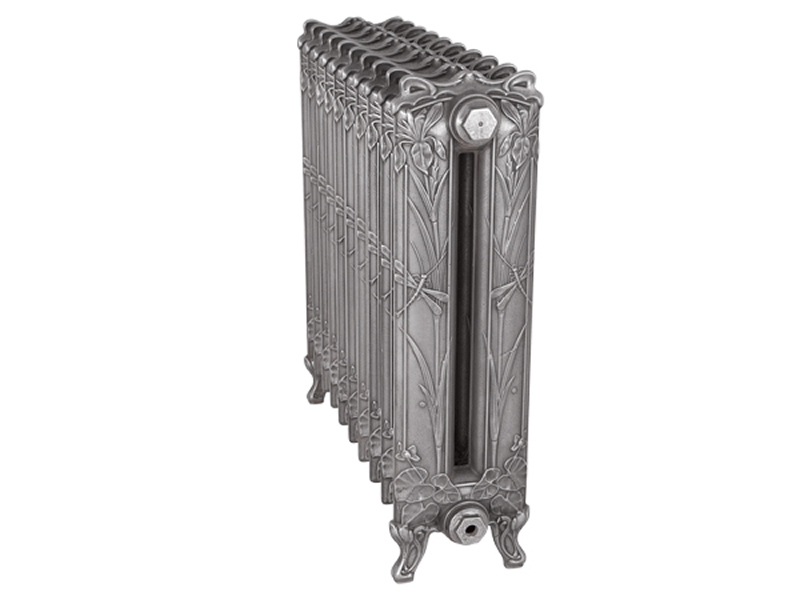

Dragonfly Cast Iron Radiator 800 01
Model No. Height Sections Width
/Length
(inc. bushes)		 Depth
(from wall)		 BTU's
(ΔT 30°)		 Watts
(ΔT 30°)		 BTU's
(ΔT 50°)		 BTU's
(ΔT 60°)		 Watts
(ΔT 60°)		 Empty Weight Filled Weight Price From
(in Primer)		 Buy Radiator
TBK046/047 790mm 3 289mm 225mm 741 219 1386 1734 507 36.6kg 45.3kg £277.50
TBK046/047 790mm 4 374mm 225mm 988 292 1848 2312 676 48.8kg 60.4kg £370.00
TBK046/047 790mm 5 459mm 225mm 1235 365 2310 2890 845 61.0kg 75.5kg £462.50
TBK046/047 790mm 6 544mm 225mm 1482 438 2772 3468 1014 73.2kg 90.6kg £555.00
TBK046/047 790mm 7 629mm 225mm 1729 511 3234 4046 1183 85.4kg 105.7kg £647.50
TBK046/047 790mm 8 714mm 225mm 1976 584 3696 4624 1352 97.6kg 120.8kg £740.00
TBK046/047 790mm 9 799mm 225mm 2223 657 4158 5202 1521 109.8kg 135.9kg £832.50
TBK046/047 790mm 10 884mm 225mm 2470 730 4620 5780 1690 122.0kg 151.0kg £925.00
TBK046/047 790mm 11 969mm 225mm 2717 803 5082 6358 1859 134.2kg 166.1kg £1017.50
TBK046/047 790mm 12 1054mm 225mm 2964 876 5544 6936 2028 146.4kg 181.2kg £1110.00
TBK046/047 790mm 13 1139mm 225mm 3211 949 6006 7514 2197 158.6kg 196.3kg £1202.50
TBK046/047 790mm 14 1224mm 225mm 3458 1022 6468 8092 2366 170.8kg 211.4kg £1295.00
TBK046/047 790mm 15 1309mm 225mm 3705 1095 6930 8670 2535 183.0kg 226.5kg £1387.50
TBK046/047 790mm 16 1394mm 225mm 3952 1168 7392 9248 2704 195.2kg 241.6kg £1480.00
TBK046/047 790mm 17 1479mm 225mm 4199 1241 7854 9826 2873 207.4kg 256.7kg £1572.50
TBK046/047 790mm 18 1564mm 225mm 4446 1314 8316 10404 3042 219.6kg 271.8kg £1665.00
TBK046/047 790mm 19 1649mm 225mm 4693 1387 8778 10982 3211 231.8kg 286.9kg £1757.50
TBK046/047 790mm 20 1734mm 225mm 4940 1460 9240 11560 3380 244.0kg 302.0kg £1850.00
TBK046/047 790mm 21 1819mm 225mm 5187 1533 9702 12138 3549 256.2kg 317.1kg £1942.50
TBK046/047 790mm 22 1904mm 225mm 5434 1606 10164 12716 3718 268.4kg 332.2kg £2035.00
TBK046/047 790mm 23 1989mm 225mm 5681 1679 10626 13294 3887 280.6kg 347.3kg £2127.50
TBK046/047 790mm 24 2074mm 225mm 5928 1752 11088 13872 4056 292.8kg 362.4kg £2220.00
TBK046/047 790mm 25 2159mm 225mm 6175 1825 11550 14450 4225 305.0kg 377.5kg £2312.50
TBK046/047 790mm 26 2244mm 225mm 6422 1898 12012 15028 4394 317.2kg 392.6kg £2405.00
TBK046/047 790mm 27 2329mm 225mm 6669 1971 12474 15606 4563 329.4kg 407.7kg £2497.50
TBK046/047 790mm 28 2414mm 225mm 6916 2044 12936 16184 4732 341.6kg 422.8kg £2590.00
TBK046/047 790mm 29 2499mm 225mm 7163 2117 13398 16762 4901 353.8kg 437.9kg £2682.50
TBK046/047 790mm 30 2584mm 225mm 7410 2190 13860 17340 5070 366.0kg 453.0kg £2775.00
