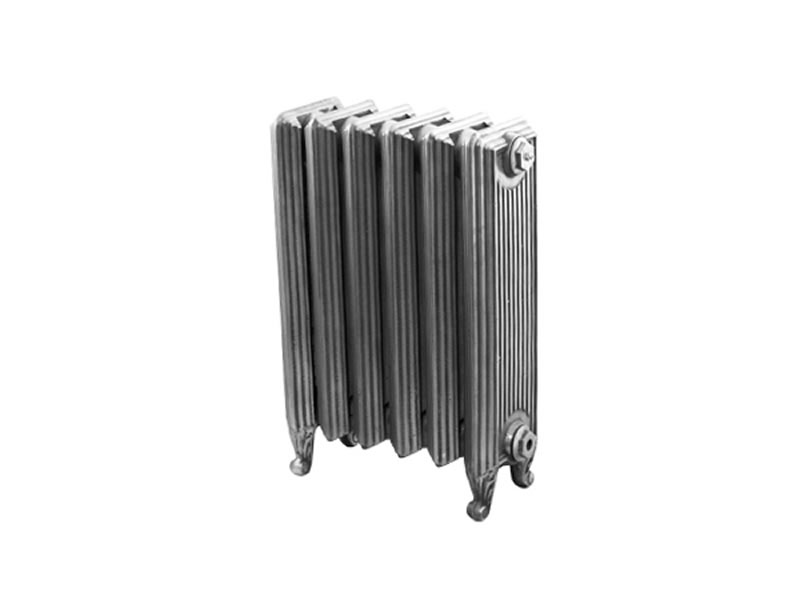

Churchill Cast Iron Radiator

Dating from the 1880s, this style was originally used in Government Buildings.

Featuring a superb BTU output per section, this radiator is ideally suited for heating larger rooms.

An alternative product you may also be interested in would be our Deco Cast Iron Radiator.

All our cast iron radiators come with a LIFETIME GUARANTEE.

Available in 2 heights: 670mm, 975mm

From £294.00 (£98.00 per section)

FREE UK Mainland Delivery*
Available In 2 Heights
Lifetime Guarantee
Specialist Finishes Available
Over 10,000 Colour Options

*On orders over £300 inc. VAT

* per cast iron radiator section.

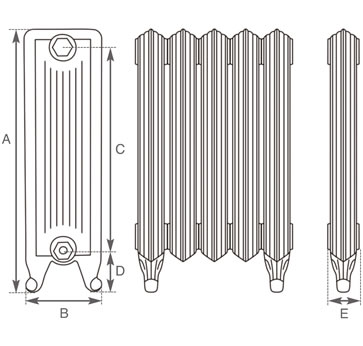

A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	Δ T50 BTUs*	Δ T50 Watts*	Δ T30 BTUs*	Δ T30 Watts*	Weight (empty)*
670	195	500	115	76	431	126	218	64	14.9kg
975	195	790	140	80	591	173	298	87	24.6kg

To calculate the British Thermal Units (BTU's) required to heat your room please use our Heat Output (BTU) Calculator

Our radiators are available in any desired colour or finish. Our specialised artisan finishes are as follows:

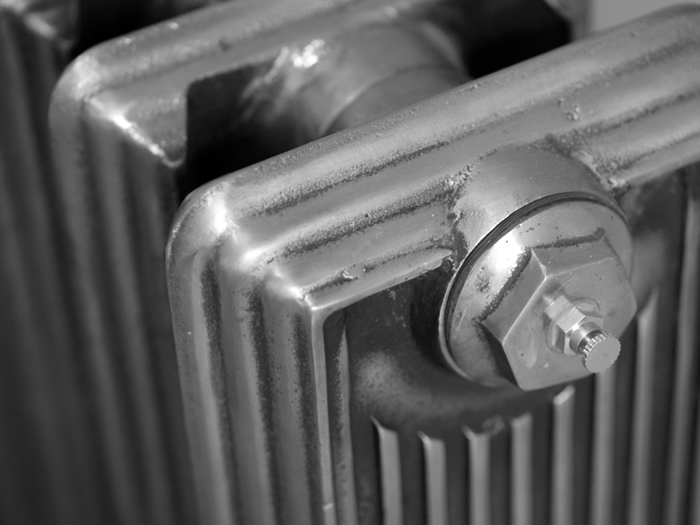

Hand Burnished
Satin Polished

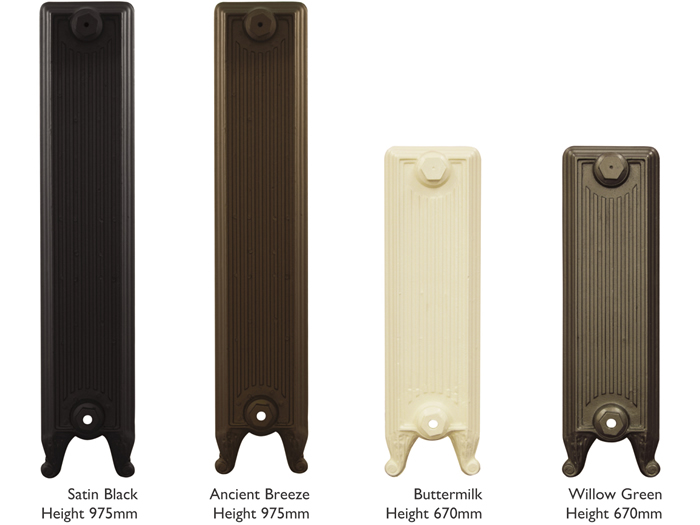

Other specialised Trads colours and finishes are shown below. Swatches are available for these 12 colours

Ancient Breeze
Buttermilk
Foundry Grey
French Grey
Graphite Grey
Hammered Bronze
Hammered Gold
Parchment White
Primer
Satin Black
Vellum
Willow Green

Any other colour is available, for example all Farrow & Ball shades and all other recognised brands.

With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase. Please contact us with your swatch request.

Churchill Radiator Sizing & Metrics

Model No.	Height	Sections	Width /Length (inc. bushes)	Depth (from wall)	BTU's (ΔT 30°)	Watts (ΔT 30°)	BTU's (ΔT 50°)	Watts (ΔT 50°)	BTU's (ΔT 60°)	Watts (ΔT 60°)	Empty Weight	Filled Weight	Price From (inc. VAT in Primer)	Buy Radiator
LD080/081	670mm	3	262mm	195mm	654	192	1293	378	1596	468	44.7kg	51.9kg	£294.00
LD080/081	670mm	4	338mm	195mm	872	256	1724	504	2128	624	59.6kg	69.2kg	£392.00
LD080/081	670mm	5	414mm	195mm	1090	320	2155	630	2660	780	74.5kg	86.5kg	£490.00
LD080/081	670mm	6	490mm	195mm	1308	384	2586	756	3192	936	89.4kg	103.8kg	£588.00
LD080/081	670mm	7	566mm	195mm	1526	448	3017	882	3724	1092	104.3kg	121.1kg	£686.00
LD080/081	670mm	8	642mm	195mm	1744	512	3448	1008	4256	1248	119.2kg	138.4kg	£784.00
LD080/081	670mm	9	718mm	195mm	1962	576	3879	1134	4788	1404	134.1kg	155.7kg	£882.00
LD080/081	670mm	10	794mm	195mm	2180	640	4310	1260	5320	1560	149.0kg	173.0kg	£980.00
LD080/081	670mm	11	870mm	195mm	2398	704	4741	1386	5852	1716	163.9kg	190.3kg	£1078.00
LD080/081	670mm	12	946mm	195mm	2616	768	5172	1512	6384	1872	178.8kg	207.6kg	£1176.00
LD080/081	670mm	13	1022mm	195mm	2834	832	5603	1638	6916	2028	193.7kg	224.9kg	£1274.00
LD080/081	670mm	14	1098mm	195mm	3052	896	6034	1764	7448	2184	208.6kg	242.2kg	£1372.00
LD080/081	670mm	15	1174mm	195mm	3270	960	6465	1890	7980	2340	223.5kg	259.5kg	£1470.00
LD080/081	670mm	16	1250mm	195mm	3488	1024	6896	2016	8512	2496	238.4kg	276.8kg	£1568.00
LD080/081	670mm	17	1326mm	195mm	3706	1088	7327	2142	9044	2652	253.3kg	294.1kg	£1666.00
LD080/081	670mm	18	1402mm	195mm	3924	1152	7758	2268	9576	2808	268.2kg	311.4kg	£1764.00
LD080/081	670mm	19	1478mm	195mm	4142	1216	8189	2394	10108	2964	283.1kg	328.7kg	£1862.00
LD080/081	670mm	20	1554mm	195mm	4360	1280	8620	2520	10640	3120	298.0kg	346.0kg	£1960.00
LD080/081	670mm	21	1630mm	195mm	4578	1344	9051	2646	11172	3276	312.9kg	363.3kg	£2058.00
LD080/081	670mm	22	1706mm	195mm	4796	1408	9482	2772	11704	3432	327.8kg	380.6kg	£2156.00
LD080/081	670mm	23	1782mm	195mm	5014	1472	9913	2898	12236	3588	342.7kg	397.9kg	£2254.00
LD080/081	670mm	24	1858mm	195mm	5232	1536	10344	3024	12768	3744	357.6kg	415.2kg	£2352.00
LD080/081	670mm	25	1934mm	195mm	5450	1600	10775	3150	13300	3900	372.5kg	432.5kg	£2450.00
LD080/081	670mm	26	2010mm	195mm	5668	1664	11206	3276	13832	4056	387.4kg	449.8kg	£2548.00
LD080/081	670mm	27	2086mm	195mm	5886	1728	11637	3402	14364	4212	402.3kg	467.1kg	£2646.00
LD080/081	670mm	28	2162mm	195mm	6104	1792	12068	3528	14896	4368	417.2kg	484.4kg	£2744.00
LD080/081	670mm	29	2238mm	195mm	6322	1856	12499	3654	15428	4524	432.1kg	501.7kg	£2842.00
LD080/081	670mm	30	2314mm	195mm	6540	1920	12930	3780	15960	4680	447.0kg	519.0kg	£2940.00
Model No.	Height	Sections	Width /Length (inc. bushes)	Depth (from wall)	BTU's (ΔT 30°)	Watts (ΔT 30°)	BTU's (ΔT 50°)	Watts (ΔT 50°)	BTU's (ΔT 60°)	Watts (ΔT 60°)	Empty Weight	Filled Weight	Price From (inc. VAT in Primer)	Buy Radiator
LD082/083	975mm	3	274mm	195mm	894	261	1773	519	2265	663	73.8kg	85.5kg	£402.00
LD082/083	975mm	4	354mm	195mm	1192	348	2364	692	3020	884	98.4kg	114.0kg	£536.00
LD082/083	975mm	5	434mm	195mm	1490	435	2955	865	3775	1105	123.0kg	142.5kg	£670.00
LD082/083	975mm	6	514mm	195mm	1788	522	3546	1038	4530	1326	147.6kg	171.0kg	£804.00
LD082/083	975mm	7	594mm	195mm	2086	609	4137	1211	5285	1547	172.2kg	199.5kg	£938.00
LD082/083	975mm	8	674mm	195mm	2384	696	4728	1384	6040	1768	196.8kg	228.0kg	£1072.00
LD082/083	975mm	9	754mm	195mm	2682	783	5319	1557	6795	1989	221.4kg	256.5kg	£1206.00
LD082/083	975mm	10	834mm	195mm	2980	870	5910	1730	7550	2210	246.0kg	285.0kg	£1340.00
LD082/083	975mm	11	914mm	195mm	3278	957	6501	1903	8305	2431	270.6kg	313.5kg	£1474.00
LD082/083	975mm	12	994mm	195mm	3576	1044	7092	2076	9060	2652	295.2kg	342.0kg	£1608.00
LD082/083	975mm	13	1074mm	195mm	3874	1131	7683	2249	9815	2873	319.8kg	370.5kg	£1742.00
LD082/083	975mm	14	1154mm	195mm	4172	1218	8274	2422	10570	3094	344.4kg	399.0kg	£1876.00
LD082/083	975mm	15	1234mm	195mm	4470	1305	8865	2595	11325	3315	369.0kg	427.5kg	£2010.00
LD082/083	975mm	16	1314mm	195mm	4768	1392	9456	2768	12080	3536	393.6kg	456.0kg	£2144.00
LD082/083	975mm	17	1394mm	195mm	5066	1479	10047	2941	12835	3757	418.2kg	484.5kg	£2278.00
LD082/083	975mm	18	1474mm	195mm	5364	1566	10638	3114	13590	3978	442.8kg	513.0kg	£2412.00
LD082/083	975mm	19	1554mm	195mm	5662	1653	11229	3287	14345	4199	467.4kg	541.5kg	£2546.00
LD082/083	975mm	20	1634mm	195mm	5960	1740	11820	3460	15100	4420	492.0kg	570.0kg	£2680.00
LD082/083	975mm	21	1714mm	195mm	6258	1827	12411	3633	15855	4641	516.6kg	598.5kg	£2814.00
LD082/083	975mm	22	1794mm	195mm	6556	1914	13002	3806	16610	4862	541.2kg	627.0kg	£2948.00
LD082/083	975mm	23	1874mm	195mm	6854	2001	13593	3979	17365	5083	565.8kg	655.5kg	£3082.00
LD082/083	975mm	24	1954mm	195mm	7152	2088	14184	4152	18120	5304	590.4kg	684.0kg	£3216.00
LD082/083	975mm	25	2034mm	195mm	7450	2175	14775	4325	18875	5525	615.0kg	712.5kg	£3350.00
LD082/083	975mm	26	2114mm	195mm	7748	2262	15366	4498	19630	5746	639.6kg	741.0kg	£3484.00
LD082/083	975mm	27	2194mm	195mm	8046	2349	15957	4671	20385	5967	664.2kg	769.5kg	£3618.00
LD082/083	975mm	28	2274mm	195mm	8344	2436	16548	4844	21140	6188	688.8kg	798.0kg	£3752.00
LD082/083	975mm	29	2354mm	195mm	8642	2523	17139	5017	21895	6409	713.4kg	826.5kg	£3886.00
LD082/083	975mm	30	2434mm	195mm	8940	2610	17730	5190	22650	6630	738.0kg	855.0kg	£4020.00
